Way Control Valve AGV-XX-01-X-XX

Way Control Valve AGV-XX-01-X-XX 001XXXX Way Control Valve AGV-XX-01-X-XX Shut-off Valve / Outlet Valve 1/2" BSP

Way Control Valve AGV-XX-01-X-XX

Article No.
001XXXX
Modell
Way Control Valve AGV-XX-01-X-XX
Design
Shut-off Valve / Outlet Valve
Version
1/2" BSP
Way Control Valve AGV-XX-01-X-XX Bild

ABNOX Directional Control Valves are suitable for highly viscous media. These Directional Control Valves have a manual override.

The 2/2-way Valve models (Shut-off Valves and Outlet Valves) are normally spring-return open or closed, depending on the version. When 24 [VDC] is applied, the outlet is opened or closed. The basic body of the 2/2-way Valve model has a medium inlet (G 1/2") and a medium outlet (G 1/2").

In the normal state, the 3/2-way Valve model is spring-return open in the flow direction (through axis) and the side branches are closed. When 24 [VDC] is applied, the Valve switches the flow to the side outlets. The main body of the 3/2-way Valve model has one medium inlet (G 1/2") and three medium outlets (G 1/2").

All ABNOX Directional Control Valves are equipped with a 24 [VDC] / 1.17 [A] solenoid coil. The interface consists of a 4-pin M12 plug for the 24 [VDC] power supply.

Connections / Circuit diagram

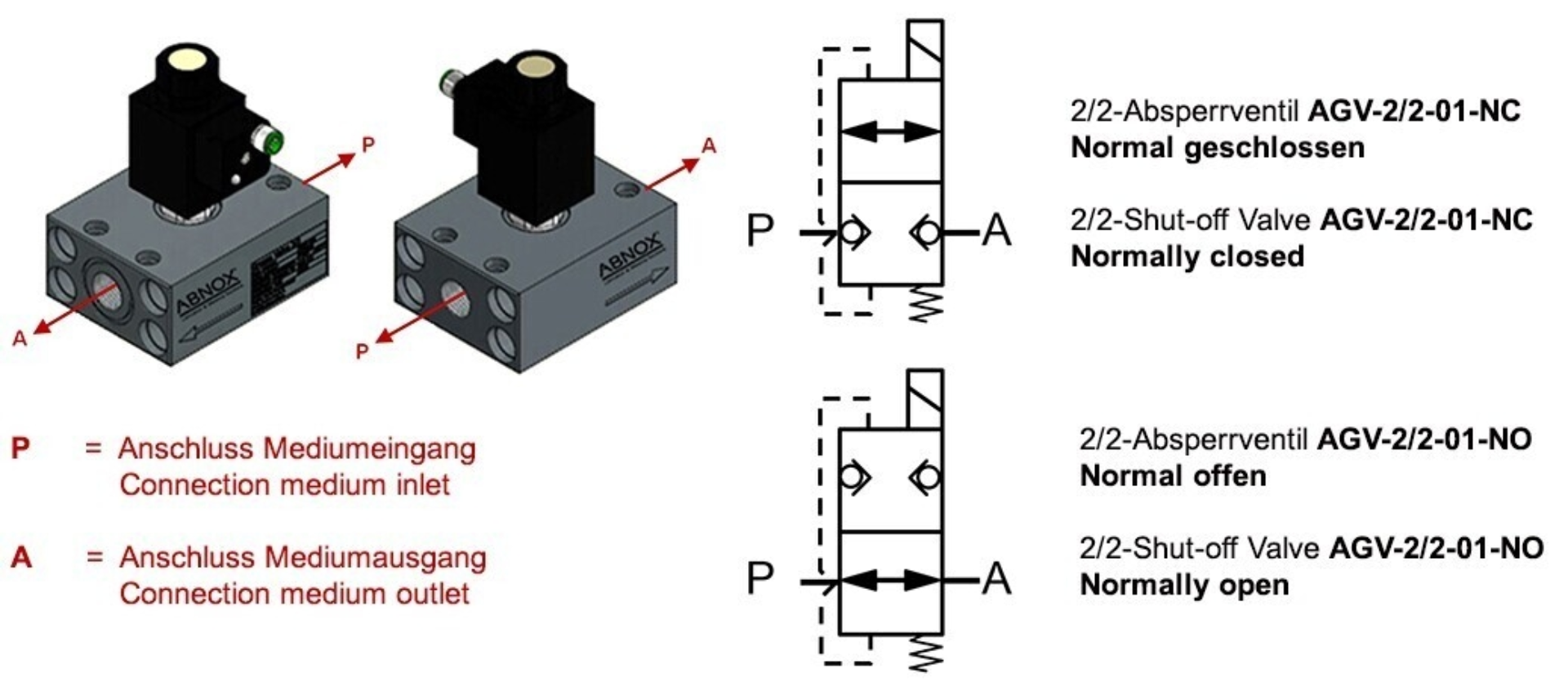

001 XXXX eb1

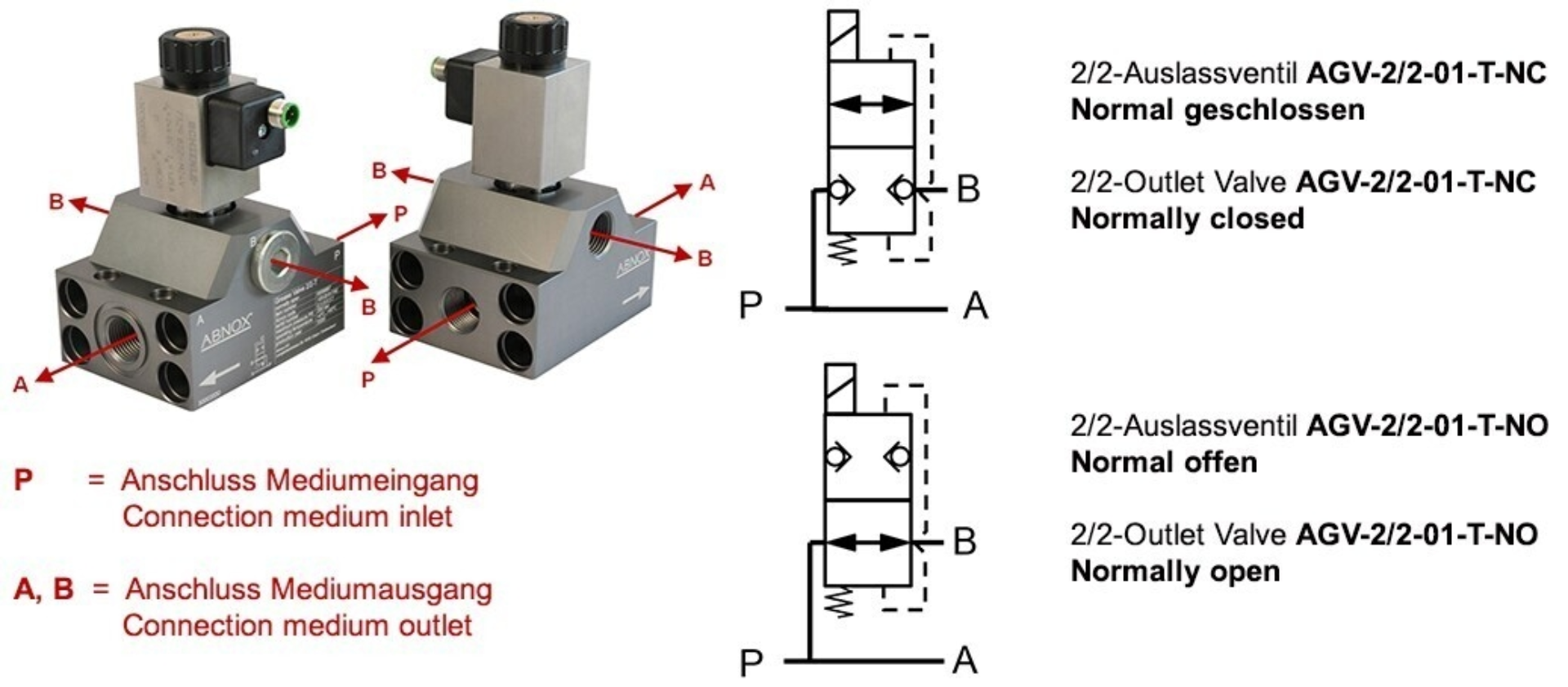

001 XXXX eb2

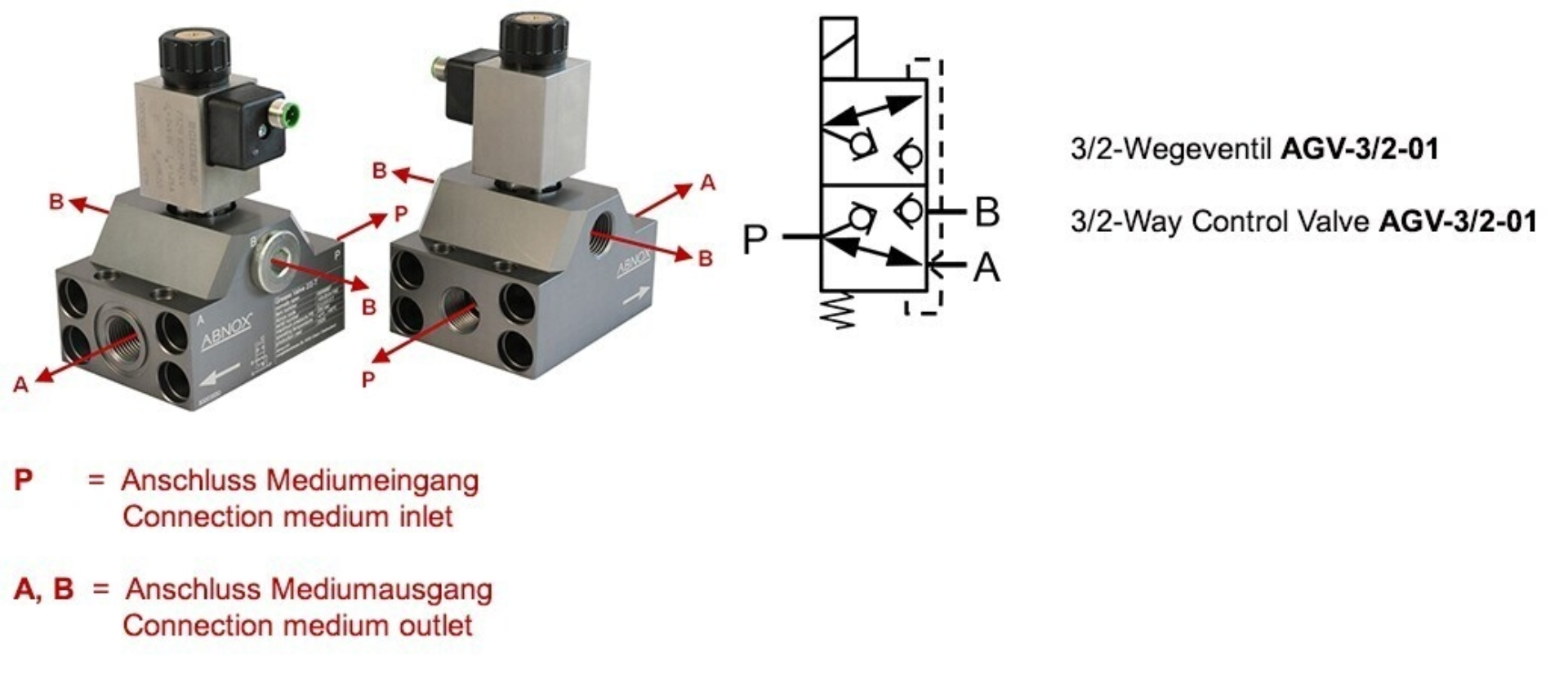

001 XXXX eb3
Dimensions

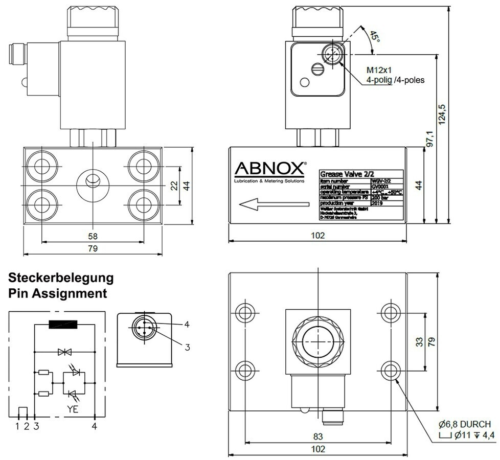

Dimensions Bild

2/2-Shut-off Valve AGV-2/2-01-NC (normally closed)
2/2-Shut-off Valve AGV-2/2-01-NO (normally open)

Dimensions

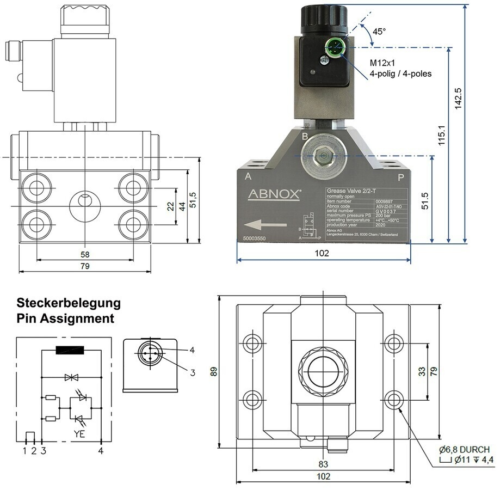

Dimensions Bild

2/2-Outlet Valve AGV-2/2-01-T-NC (normally closed)
2/2-Outlet Valve AGV-2/2-01-T-NO (normally open)
3/2-Way Control Valve AGV-3/2-01

Selection ABNOX Grease Valves
Article No. Model Construction type Version
0010100
AGV-2/2-01-NC
2/2 Shut-off Valve
Normal condition spring-reset closed (normally closed)
On request
AGV-2/2-01-NO
2/2 Shut-off Valve
Normal condition spring-reset open (normally open)
On request
AGV-2/2-01-T-NC
2/2 Outlet Valve
Normal condition outlet spring-reset closed (normally closed)
0009897
AGV-2/2-01-T-NO
2/2 Outlet Valve
Normal condition outlet spring-reset open (normally open)
On request
AGV-3/2-01
3/2-Way Control Valve
Normal condition spring-reset open in the flow direction
Technical Data
Model AGV-2/2-01-NC / AGV-2/2-01-NO AGV-2/2-01-T-NC / AGV-2/2-01-T-NO / AGV-3/2-01
Specification for operation medium
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Connection medium inlet internal thread
G 1/2"
G 1/2"
Connection medium outlet internal thread
G 1/2"
G 1/2"
Max. operating pressure [bar]
200
200
Connection plug
M12x1 (4-poles)
M12x1 (4-poles)
Cable cross-section [mm2]
0.5 to 1.5
0.5 to 1.5
Nominal current [A]
1.17
1.17
Power input [W]
28
28
Voltage [V DC]
24 +/-10%
24 +/-10%
Protection type
IP 65
IP 65
Max. Coil housing temperature [°C]
85 (at ambient temperature 21°C)
85 (at ambient temperature 21°C)
Min. / max. operating temperature [°C]
4 / 50
4 / 50
Dimensions L x W x H [mm]
102 x 125 x 87
102 x 143 x 92
Weight [kg]
1.2
1.5
Downloads
Document

Operating Manual

3d file

3D-Data 0010100 AGV-2/2-01-NC

3d file

3D-Data 0009897 AGV-2/2-01-T-NO
