Product information

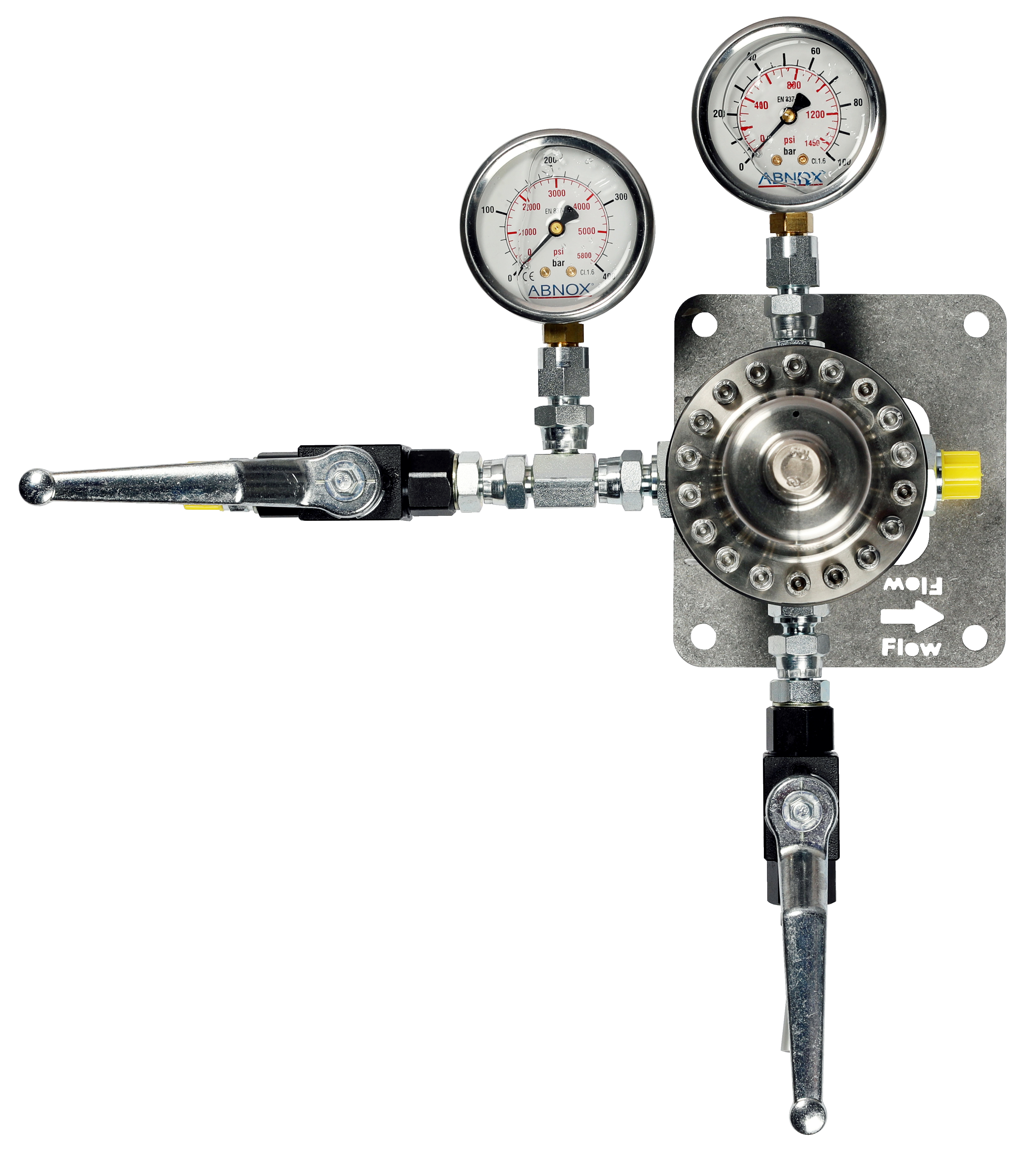

Design for grease flow direction from LEFT to RIGHT
Article-No.: 0013939
MMDR Module Unit consisting of components:
| Description | Article-No. |
|---|---|
| Medium Inlet Stopcock 1/4" BSP | 8588001 |
Inlet Pressure Gauge 1/4" BSP / 0 - 100 bar | 8373501 |
| Diaphragm Precision Pressure Regulator MMDR 0 - 50 bar | 0013097 |
Outlet Pressure Gauge 1/4" BSP / 0 - 100 bar | 8373501 |
| Stopcock 1/4" BSP for manual venting | 8588001 |

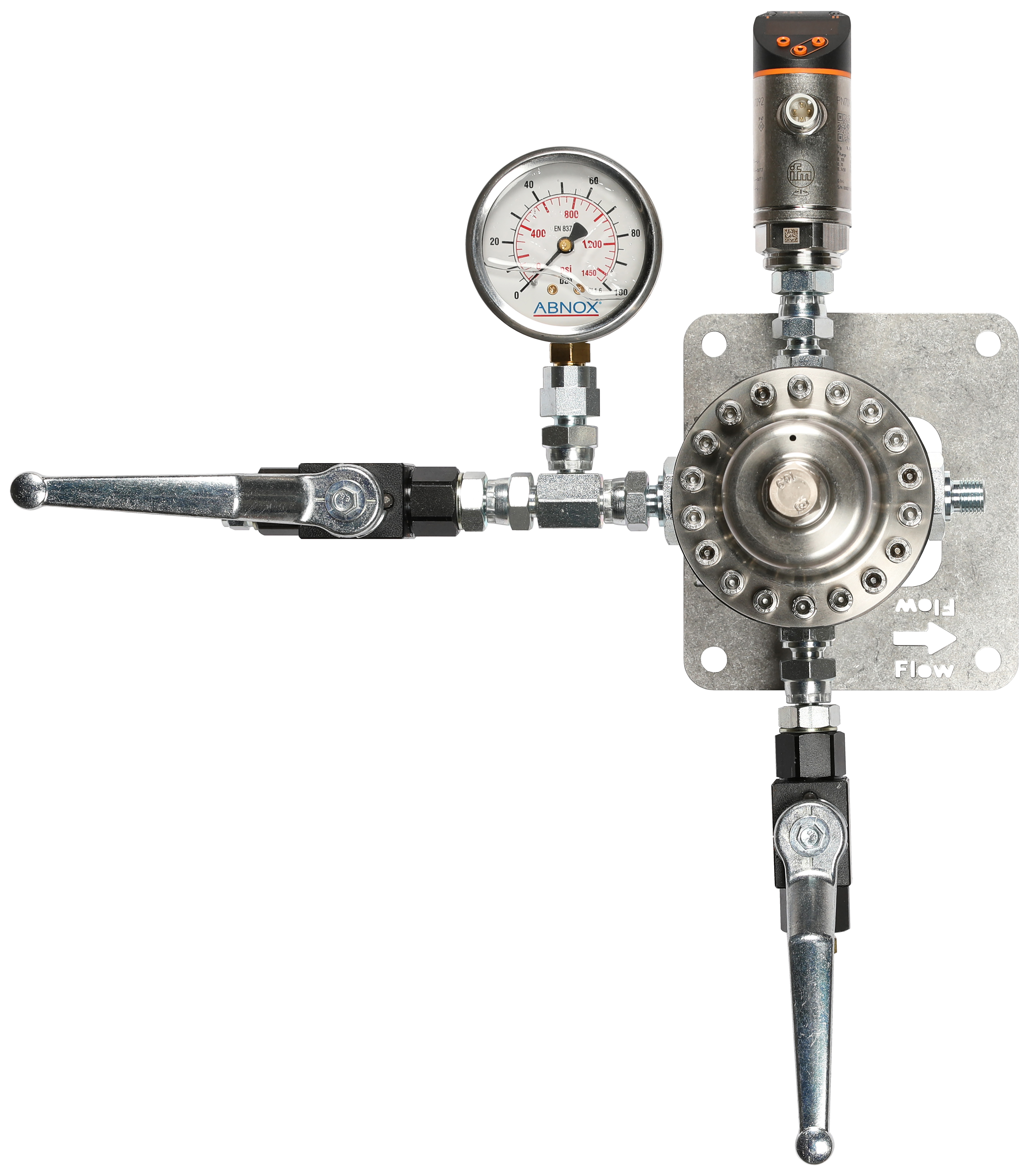

Design for grease flow direction from LEFT to RIGHT
Article-No.: 0013088
MMDR Module Unit consisting of components:
| Description | Article-No. |
|---|---|
| Medium Inlet Stopcock 1/4" BSP | 8588001 |
Inlet Pressure Gauge 1/4" BSP / 0 - 100 bar | 8373501 |
| Diaphragm Precision Pressure Regulator MMDR 0 - 50 bar | 0013097 |
| Electrical Output Pressure Switch with Display | 0001670 |
| Stopcock 1/4" BSP for manual venting | 8588001 |
Design for grease flow direction from LEFT to RIGHT
Article-No.: 0013089
MMDR Module Unit consisting of components:
| Description | Article-No. |
|---|---|
| Medium Inlet Stopcock 1/4" BSP | 8588001 |
Inlet Pressure Gauge 1/4" BSP / 0 - 100 bar | 8373501 |
| Diaphragm Precision Pressure Regulator MMDR 0 - 50 bar | 0013097 |
| Electrical Output Pressure Switch with Display | 0001670 |
| Stopcock 1/4" BSP for manual venting | 8588001 |
| 5-ways Manifold with Fittings 1/4" BSP | 4080501 |

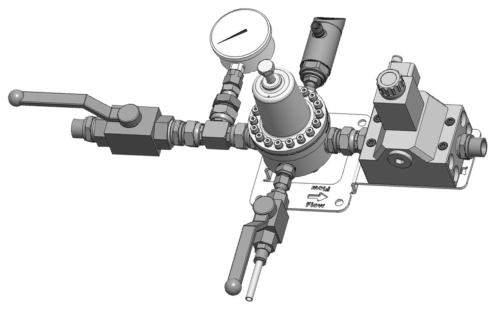

Design for grease flow direction from LEFT to RIGHT
Article-No.: 0014215
MMDR Module Unit consisting of components:
| Description | Article-No. |
|---|---|
| Medium Inlet Stopcock 1/2" BSP | 8588201 |
Inlet Pressure Gauge 1/4" BSP / 0 - 100 bar | 8373501 |
| Diaphragm Precision Pressure Regulator MMDR 0 - 50 bar | 0013097 |
| Electrical Output Pressure Switch with Display | 0001670 |
| Stopcock 1/4" BSP for manual venting | 8588001 |
| 2/2-Way-Outlet Valve AGV-2/2-01-T-NO (normally open) | 0009897 |
Dimensioned Sketch Module Unit 0013939
Spare Parts List Module Unit 0013939
Dimensioned Sketch Module Unit 0013088
Spare Parts List Module Unit 0013088
Dimensioned Sketch Module Unit 0014215
Spare Parts List Module Unit 0014215
3D Data Module Unit 0013939
stp
3D Data Module Unit 0013088
stp
3D Data Module Unit 0013089
stp
3D Data Module Unit 0014215
stp
