Angled Rigid Tube with Conical Nozzle 400 bar / 1/8'' BSP

Angled Rigid Tube with Conical Nozzle 400 bar / 1/8'' BSP 3549802 Angled Rigid Tube 400 bar / Combination with Conical Nozzle / 1/8'' BSP

Angled Rigid Tube with Conical Nozzle 400 bar / 1/8'' BSP

Article No.
3549802
Modell
Angled Rigid Tube
Design
400 bar / Combination
Version
with Conical Nozzle / 1/8'' BSP

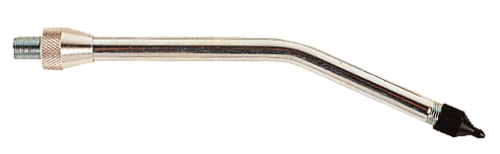

Angled Rigid Tube with Conical Nozzle 400 bar / 1/8'' BSP Bild

Rigid Feed Tube Combination with Steel Conical Nozzle for Lubrication Equipments:

  • ABNOX Hand Lever Pumps MURALT AX-II
  • ABNOX One-hand Pumps ABNOX WANNER
  • ABNOX One-hand Pumps mINI WANNER
  • ABNOX Electric Hand Pumps AX-400

Suitable for no tools required for mounting, the knurled nut allows tightening or loosening by hand, about to adjust the tube with version angled in any desired direction.
Optimal sealing provided by an O-Ring inside the nut.

This Rigid Feed Tube Combination is equipped with:
Specification Article No. Quantity
Rigid Angled Feed Tube, length = 180 mm, Connector 1/8'' BSP
1 piece
Steel Conical Nozzle for Lubrication Nipple of type D and cardan shafts
1 piece
Technical Data
Area of application for greasenipples type
D / Cardan shafts
Operating pressure [bar]
400
Max. pressure [bar]
600
Connection external thread
1/8'' BSP
External diameter [mm]
11 (Conical nozzle)
Downloads
Document

Dimensioned Sketch
