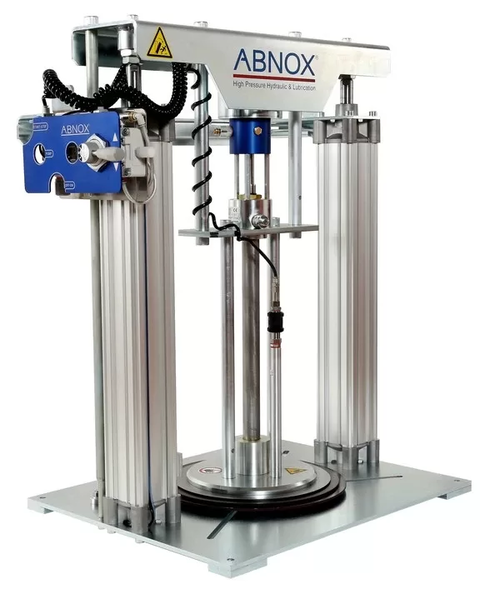

The ABNOX Air-operated Drum Pump Light type S with one-hand operation is the ideal and low-cost Grease Supply System for easy and fast conveying of moderately to highly viscose lubricants.
The separate design of suction system and air motor prevents a possible permeation of the medium into the pump head.
Thanks to the constant contact pressure of the follower plate onto the medium the follower plate is brought always to update the current fill level.
With the option "container empty with pump stop" switches off the pump when the low fill level has been reached, thus preventing the aspiration of air. Replacement of the empty container is quick, clean and convenient, and done with little manual effort. Thanks to complete drainage of the container, a minimum amount of lubricant is wasted.
ABNOX Drum Pump from type S with pressure ratio 25:1 is available with different upgrading options and suitable for all containers up to 50 kg available on the market.
How can we help you?
Drum Pumps
|
0005202 | AXFP3-S25-Light | 25:1 Type S | up to 50 kg |
Drum Pumps
Status
Discarded Article
Article No.
0005202
Modell
AXFP3-S25-Light
Design
25:1 Type S
Version
up to 50 kg
Character features of ABNOX - Drum Pumps:
• Modular design
• Long life time product
• Components harmonised perfectly with each other
• Suitable for centralized supply pump
• Usable also for low temperatures
• No electric connector
• Exchangeable follower plate
• Adjustable pressure at the follower plate
• Reliability one-hand operation for the UP and DOWN from double cylinder pump lift
Type Code for Drum Pumps AXFP2-Light
Note for the shipping:
For all overseas exports the ABNOX Drum Pump AXFP2-Light must be packed in a plywood folding box according to ISPM-15 standard ((Dimension 80 x 60 x 145 cm / Art.Nr. 0003001).
Upgrading options
| Upgrading options | Article No. | Quantity |
|---|---|---|
|
Upgrading set acoustic container empty signal with pump stop (L)
|
1 piece
|
|
|
Upgrading set electric refill and empty signal (E)
|
2 piece
|
|
|
Upgrading set 4 guide rollers/swivel castor (LR)
|
1 piece
|
|
|
Upgrading set pedestal (SF)
|
1 piece
|
|
|
Connection piece 1/4'' BSP with gauge 400 bar and ball valve for air vent (AB)
|
1 piece
|
Technical Data
Container internal dia. [mm]
260 - 410
Container height [mm]
680
Suction tube dia. [mm]
32
Description
This Air-operated Grease Pump from type S is qualified for delivering silicon greases and silicon oils with a viscosity up to 60'000 cST.Not suitable for hardening and abrasive media, or with abrasive filling substances!
Input medium specification
Lubricants up to NLGI 4 / 1'000'000 m Pa s
Delivery rate at pump outlet [cm3/min]
1295
Delivery rate per double stroke [cm3]
17
Min. / max. workingpressure medium inlet [bar]
4/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
140
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
233
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
We are happy to calculate the follower plate for you.
To come up with the right size we need the following:
- internal top-diameter
- internal bottom-diameter
- container height
