Single Grease Pumps

Single Grease Pumps 4064000 60:1 / Type S Container height 400 mm Container 1 - 5 kg

Single Grease Pumps

Status
Discarded Article
Article No.
4064000
Modell
60:1 / Type S
Design
Container height 400 mm
Version
Container 1 - 5 kg

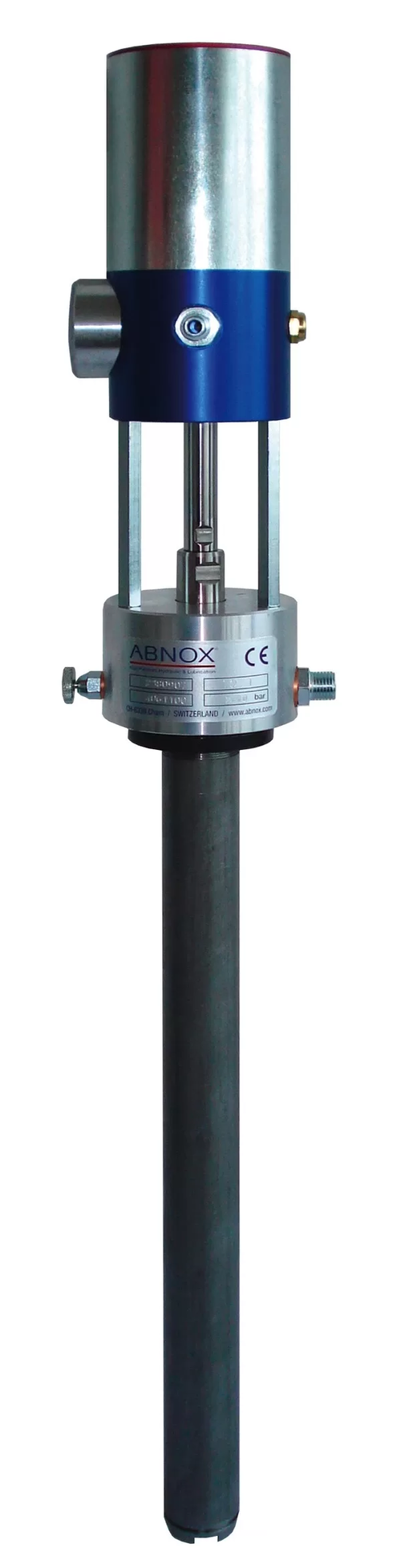

Single Grease Pumps Bild

The Air-operated Grease Pump with pressure ratio from 60:1 is designed to lubricate machinery and all mechanical equipment.

ABNOX Air-operated Grease Pump from type S is suitable for transferring of lubricants of medium to high viscosity levels as well as silicon greases and silicon oils.

This Air-operated Grease Pump is renowned for their high efficiency as well as their extremely low noise levels.

Outstanding reliability due to high quality materials, seals and special change-over valve.

Recommendation:
Never let the pump system and especially not the suction tube rest on the floor.
Keep them away from dirt, you will avoid damage to the pump and expensive repairs.

Technical Data
Container size [kg]
1 - 5
Container height [mm]
400
Suction tube dia. [mm]
32
Suction tube lenght [mm]
402
Description
This Air-operated Grease Pump from type S is qualified for delivering silicon greases and silicon oils with a viscosity up to 60'000 cST.Not suitable for hardening and abrasive media, or with abrasive filling substances!
Input medium specification
Lubricants up to NLGI 3 / 5'000 m Pa.s
Delivery rate at pump outlet [cm3/min]
465
Delivery rate per double stroke [cm3]
6
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
310
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
516
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
Downloads
Document

Dimensioned Sketch

Document

Spare Parts List

Document

Operating Manual
