Product information

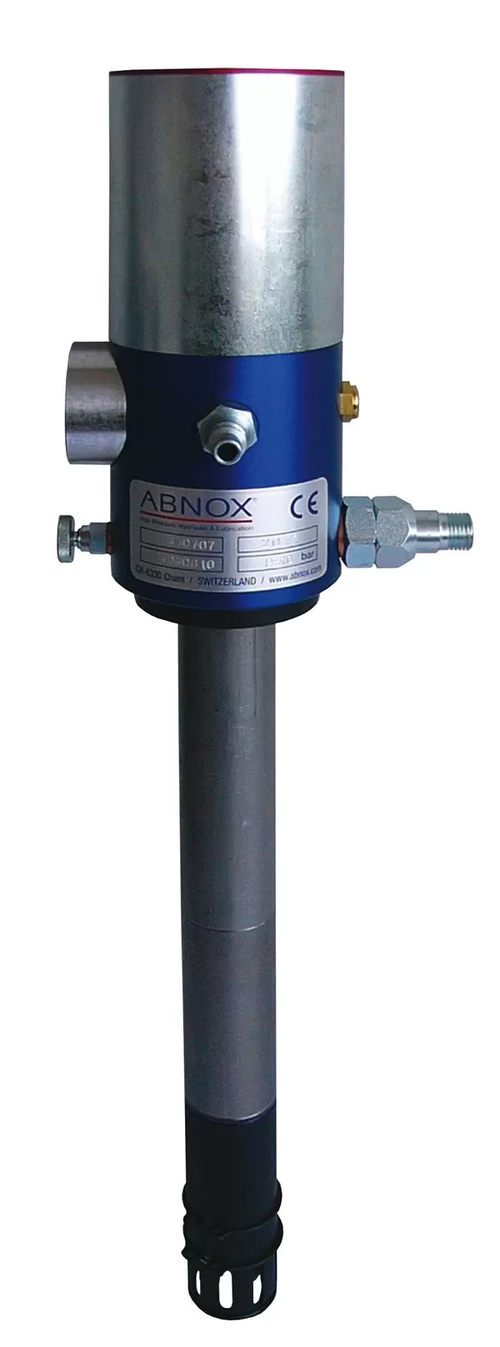

The air-operated grease pump with pressure ratio from 5:1 is suited especially for delivering lubricants, as decanting and filling systems or for the filling of gearboxes or in centralised lubricating systems.
This Air-operated Grease Pump is renowned for their high efficiency as well as their extremely low noise levels.
Outstanding reliability due to high quality materials, seals and special change-over valve.
Recommendation:
Never let the pump system and especially not the suction tube rest on the floor.
Keep them away from dirt, you will avoid damage to the pump and expensive repairs.
Container size [kg]
1 - 5
Container height [mm]
400
Suction tube dia. [mm]
32
Suction tube length [mm]
402
Input medium specification
Schmierstoffe bis NLGI 1 / 5'000 m Pa.s
Delivery rate at pump outlet [cm3/min]
1500
Delivery rate per double stroke [cm3]
20
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
27
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
45
Connection internal thread
G 1/4''
Connection medium outlet external thread
G 1/4''
Max. air consumption [l/min.]
150
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
G 1/4''
Min. / max. operatingtemperature [°C]
10/40
