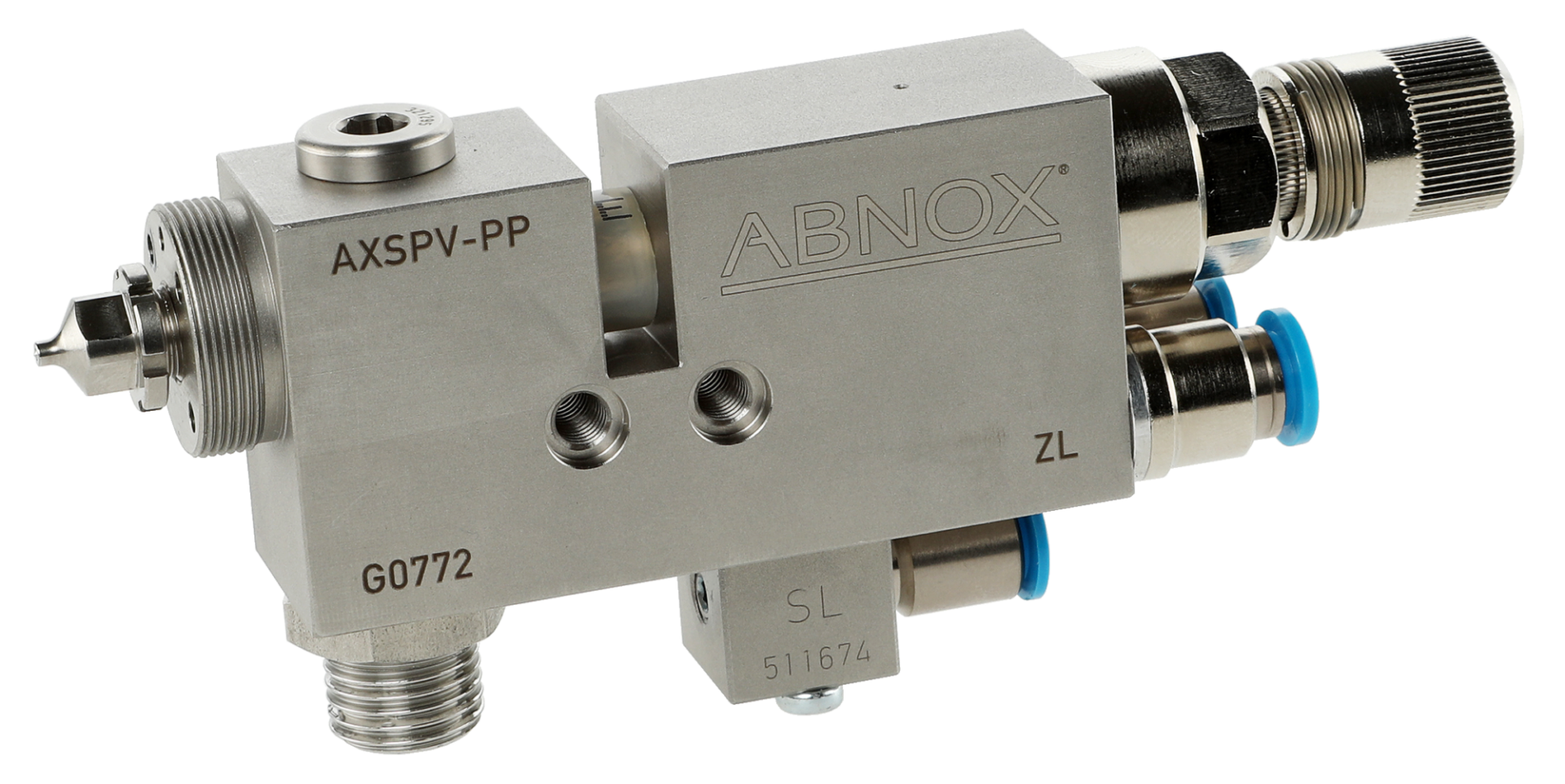

This Pneumatic Spray Valve AXSPV-PP is equipped with a Standard Nozzle Needle and Standard Nozzle Ø 1.0 mm.
How can we help you?
Pneumatic Spray Valve AXSPV-PP-STD-1.0-S00-DS0-RNV
|
0010542 | AXSPV-PP-STD-1.0-S00-DS0-RNV | Standard Nozzle dia. 1.0 mm | Pneumatic |
Pneumatic Spray Valve AXSPV-PP-STD-1.0-S00-DS0-RNV
Article No.
0010542
Modell
AXSPV-PP-STD-1.0-S00-DS0-RNV
Design
Standard Nozzle dia. 1.0 mm
Version
Pneumatic

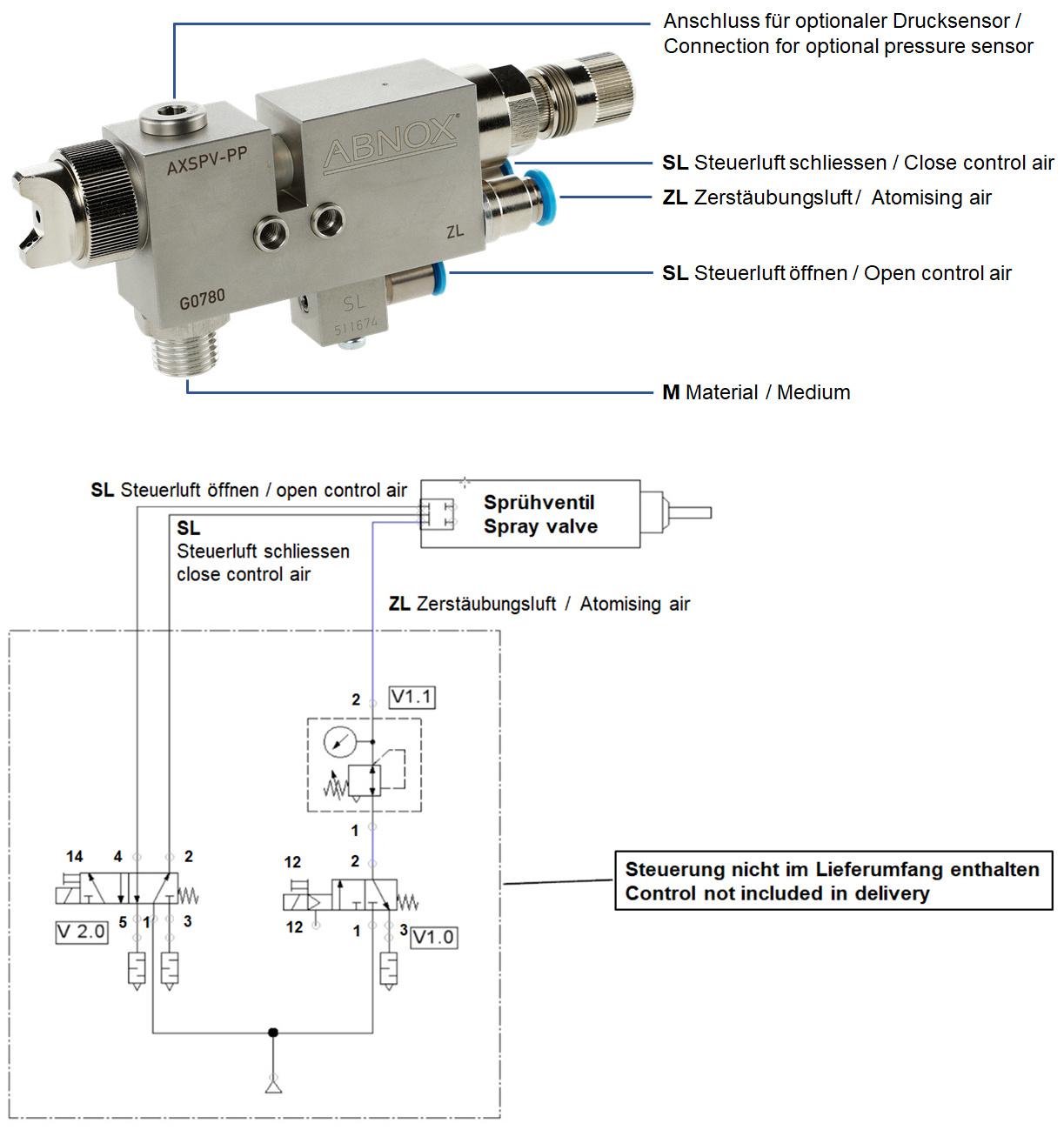

Connection diagram / Circuit diagram:
- Atomising air connection ZL: to 2/2-way Solenoid Valve
- Control air connection SL: Close control air to 5/2-way Solenoid Valve
- Control air connection SL: Open control air to 5/2-way Solenoid Valve
- Material / Medium connection M: to Pressure Tank or Pump
This Pneumatic Spray Valve AXSPV-PP is equipped with:
| Specification | Quantity | Article No. |
|---|---|---|
|
Standard Nozzle dia. 1.0 mm
|
1
|
0009960
|
|
Nozzle Needle to Standard Nozzle dia. 1.0 mm
|
1
|
0010480
|
|
Latching Needle Lock RNV (without Electrical Needle Sensor) for easy adjustment of the material quantity
|
1
|
|
|
Centring for Air Cap LFK or Nozzle Extension DVL
|
1
|
|
|
Countersinks including centring sleeves (mounting)
|
2
|
The following options are available:
| Description | Article No. |
|---|---|
|
Nozzle Extension DVL (see accessories) |
|
|
Air Cap LFK (see accessories) |
|
|
Retaining Ring for Air Cap LFK |
|
|
Pressure Sensor DS1, 0 - 5 bar |
|
|
Pressure Sensor DS2, 0 - 50 bar |
|
|
Raster Needle Lock (RNA) with Electrical Needle Sensor |
|
|
Valve Heater VH |
0010471 |
|
Connection Cable M12x1, 4 poles, Length 10.0 m for Valve Heater VH |
|
|
Temperature Controller Set AXTR-024VDC-03500 with two alarm outputs, connection with Valve Heater VH |
|
|
Fine Material Pressure Regulator Modular Unit with electronic pressure switch and manual venting |
0013088 |
The following are available as spare parts:
| Description | Article No. |
|---|---|
|
Wearing Parts Kit including sealing screw for medium and air area |
0016697 |
Technical Data
"M" Material pressure [bar]
35
Connection medium inlet internal thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
"SL" Control air pressure [bar]
5 - 6
"ZL" Atomizing air pressure [bar]
0.5 (at max. control air pressure)
Pneumatic connection internal thread
1/8'' BSP / Push-in fitting for hose dia. 6 mm
