Connection medium outlet: 1/8" BSP internal thread.
How can we help you?

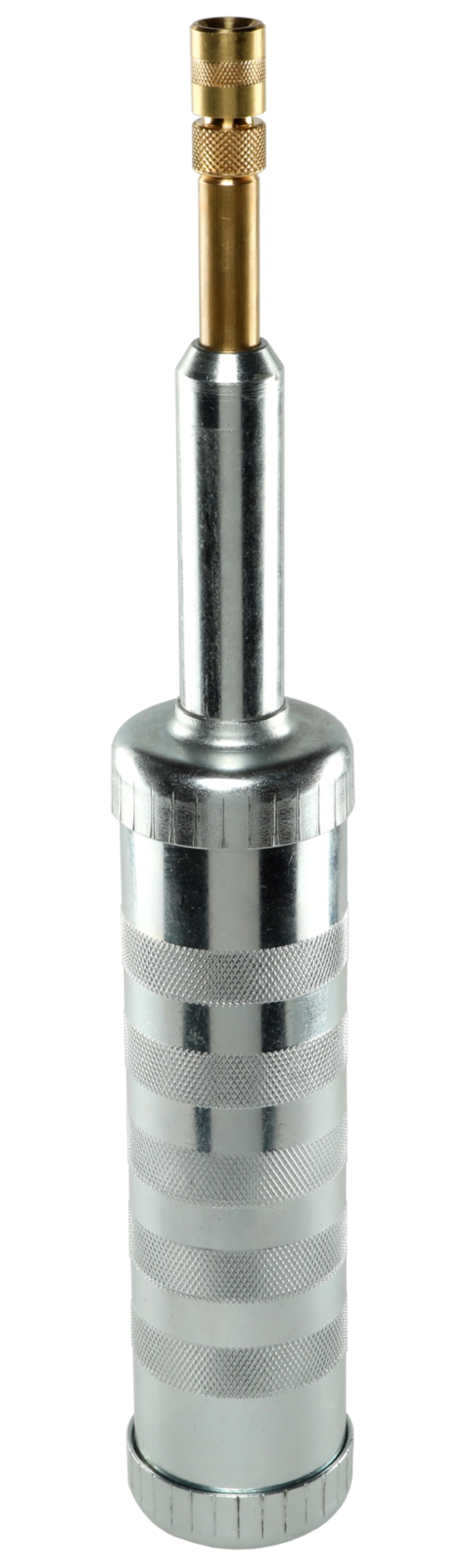

Mineral Oil Hand Push Pump 120 cm3 with Combination Nozzle / 1/8'' BSP
|
3196200 | Hand Push Pump 120 cm3 | Combination Nozzle | 1/8'' BSP for Mineral oil |
Mineral Oil Hand Push Pump 120 cm3 with Combination Nozzle / 1/8'' BSP
Article No.
3196200
Modell
Hand Push Pump 120 cm3
Design
Combination Nozzle
Version
1/8'' BSP for Mineral oil
Specification
Seal Kit
Further information can be found in the Downloads section under ''Seal Kit'' and ''Spare Parts List''.
| Description | Article No. |
|---|---|
|
Seal Kit |
3084200 |
Technical Data
Capacity cylinder [cm3]
120
Cylinder external dia. [mm]
40
Cylinder lenght [mm]
150
Total height [mm]
270
Area of application for greasenipples type
D / H /K
Filling by hand or with filling machine
Only hand filling
Input medium specification
Mineral oil
Delivery rate per stroke [cm3]
0.6
Max. pressure [bar]
150
Connection medium outlet external thread
1/8'' BSP
Min. / max. operatingtemperature [°C]
10/40
Weight [kg]
0.373

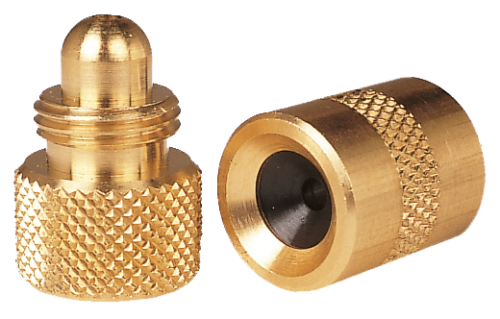

This Hand Push Pump is delivered with a Combination Nozzle (Article-No. 3845000)
