Accessories 3639500 Connector flexible Adjustable / Stainless 1/8'' BSP / Lubricant

Accessories

Status
Discarded Article
Article No.
3639500
Modell
Connector flexible
Design
Adjustable / Stainless
Version
1/8'' BSP / Lubricant
Accessories Bild

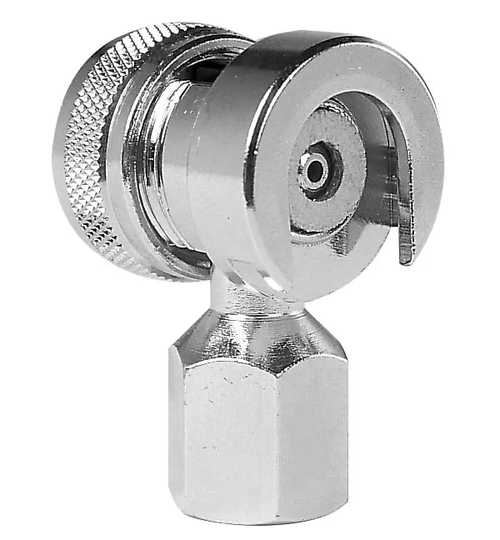

Adjustable Connector in stainless steel

Flexible connector for reliable lubricating action, suitable for button head nipples.
The connector may be rotated in any direction desired, allowing comfortable access of any nipple position.

Connect and release nipple is possible by either pulling or pushing connector.

Point of application:
Button head nipple of type A2 according to DIN 3404 with head diameter 16 mm

Technical Data
Area of application for greasenipples type
A2 (DIN 3404)
Operating pressure [bar]
200
Max. pressure [bar]
400
Connection internal thread
1/8'' BSP
External diameter [mm]
22
Width across flats [mm]
14
Downloads
Document

Dimensioned Sketch
