Clamping Technology

Clamping Technology 3257100 HP Screw Connector 1500 bar 1/4'' BSP

Clamping Technology

Status
Discarded Article
Article No.
3257100
Modell
HP Screw Connector
Design
1500 bar
Version
1/4'' BSP

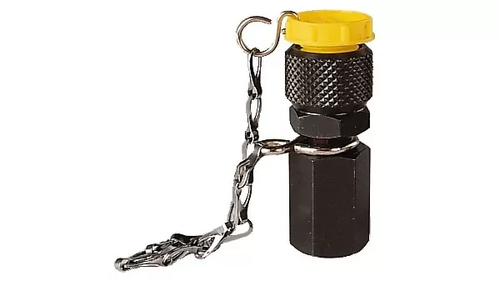

High Pressure Screw Connector with screw cap attached by chain.

This High Pressure Screw Connector is sutiable for use with high pressure hydraulic clamping.

To the fast one at- and to detach from hydraulic lines through easy put on and screw with ABNOX high pressure valve, Art.-No. 325700.

Technical Data
Operating pressure [bar]
1500

Max. pressure [bar]
2000

Connection internal thread
1/4'' BSP (screw connector)

Width across flats [mm]
17
