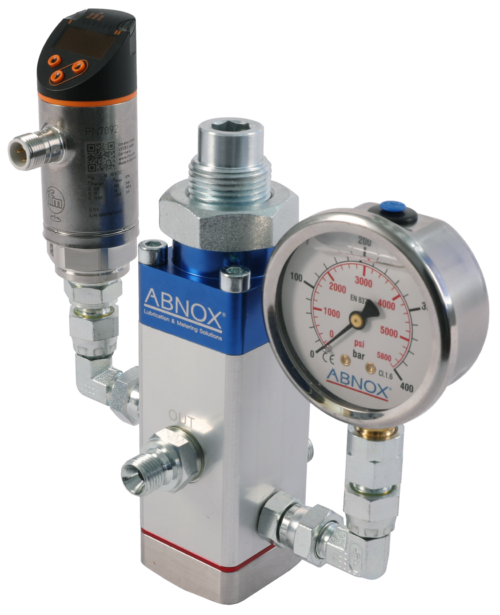

This Material Pressure Regulator is equipped with an Inlet Pressure Gauge (1M) and an Electrical Outlet Pressure Switch with Display (1DS).
How can we help you?
Material Pressure Regulator MDR-LW04-1M-1DS
|
0011637 | MDR-LW04-1M-1DS (V3.0) | 5 - 50 bar | with Inlet Pressure Gauge and Electrical Pressure Switch |
Material Pressure Regulator MDR-LW04-1M-1DS
Article No.
0011637
Modell
MDR-LW04-1M-1DS (V3.0)
Design
5 - 50 bar
Version
with Inlet Pressure Gauge and Electrical Pressure Switch
Also available as a single part:
| Description | Article No. |
|---|---|
|

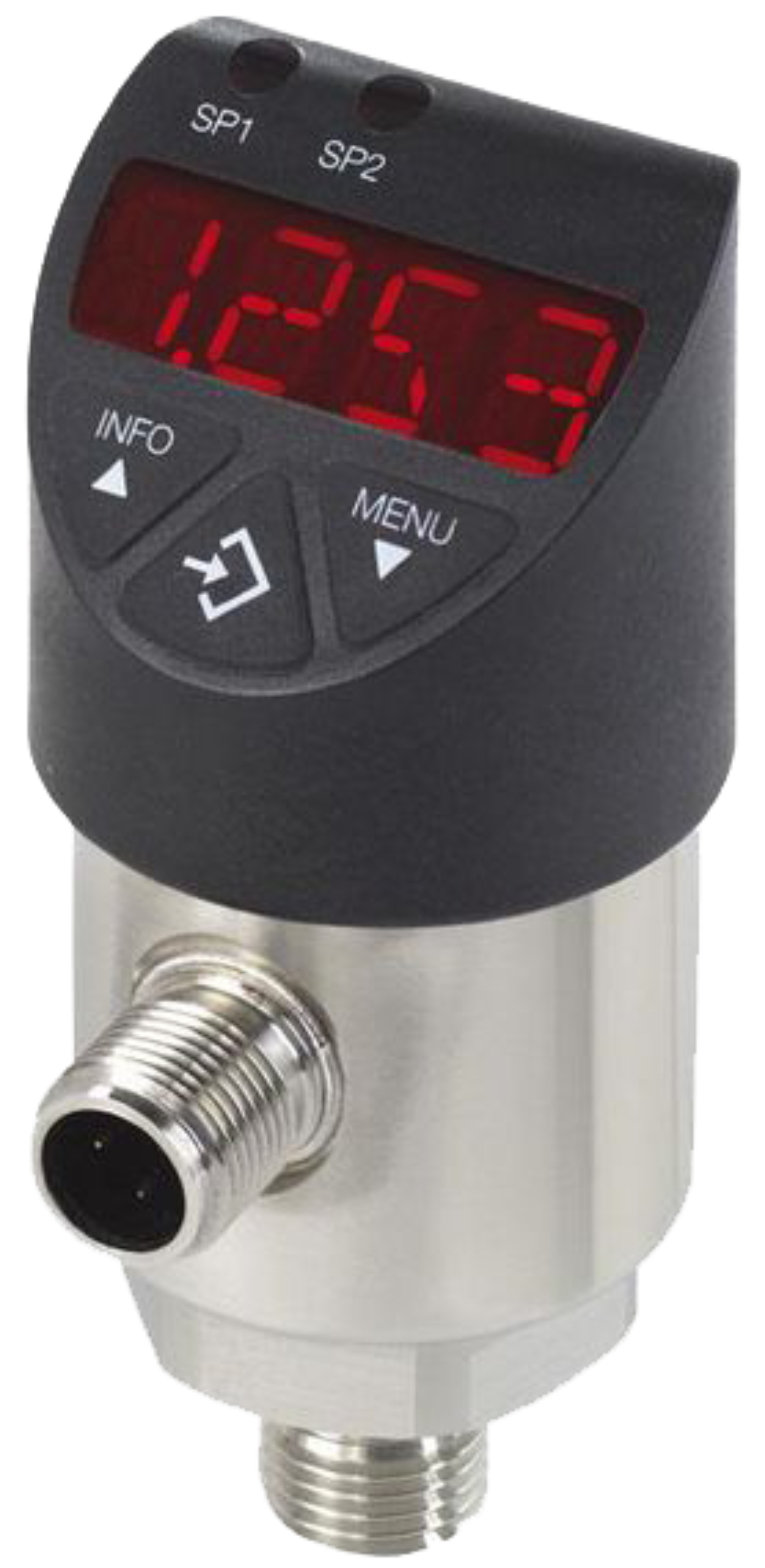

Electrical Pressure Switch with Display |
Technical Data
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Working pressure medium inlet [bar]
20 - 250
Working pressure medium outlet [bar]
5 - 50
Max. pressure [bar]
250
Connection external thread
1/4'' BSP
Seal material
PTFE/FPM
Weight [kg]
1.56
