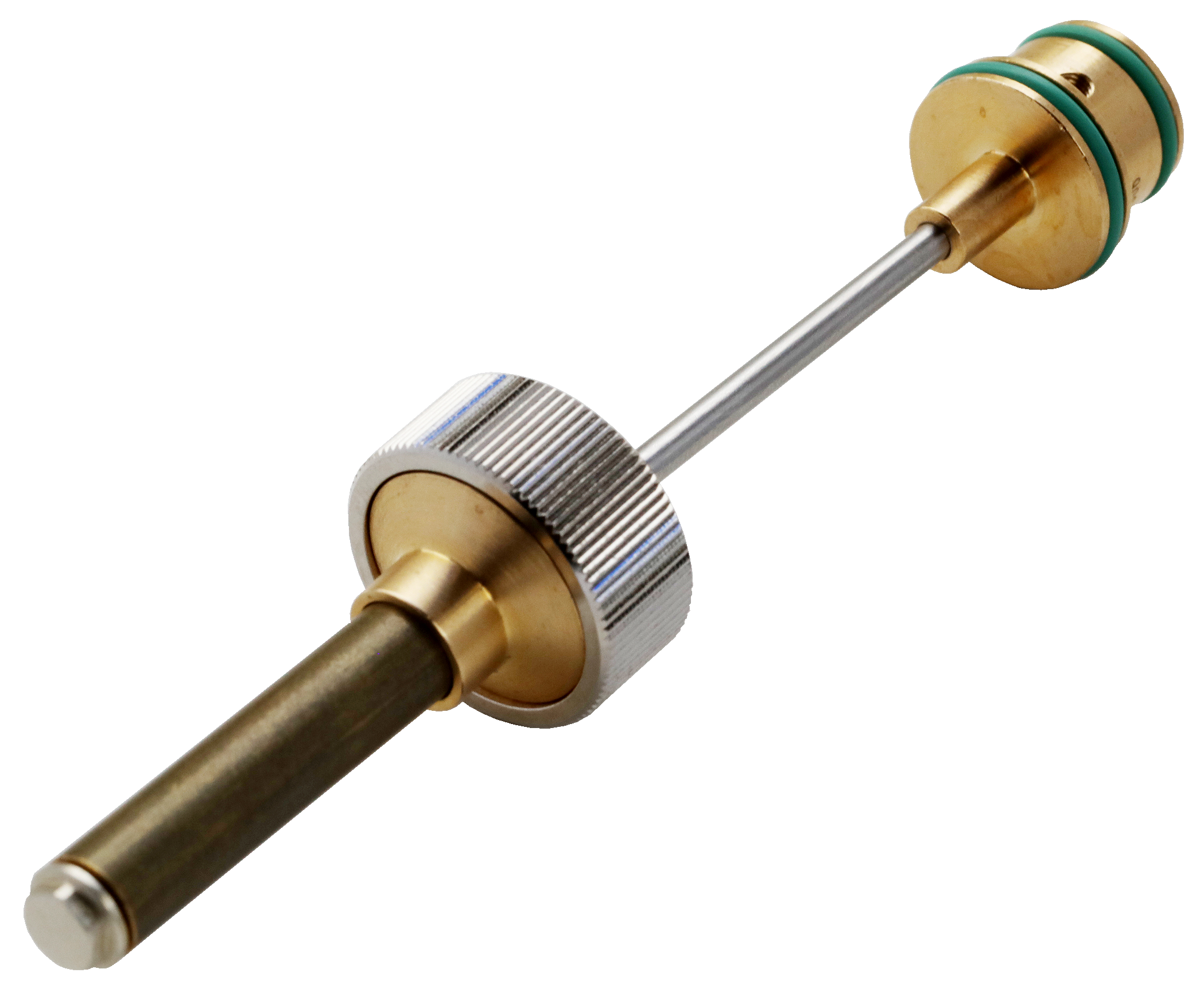

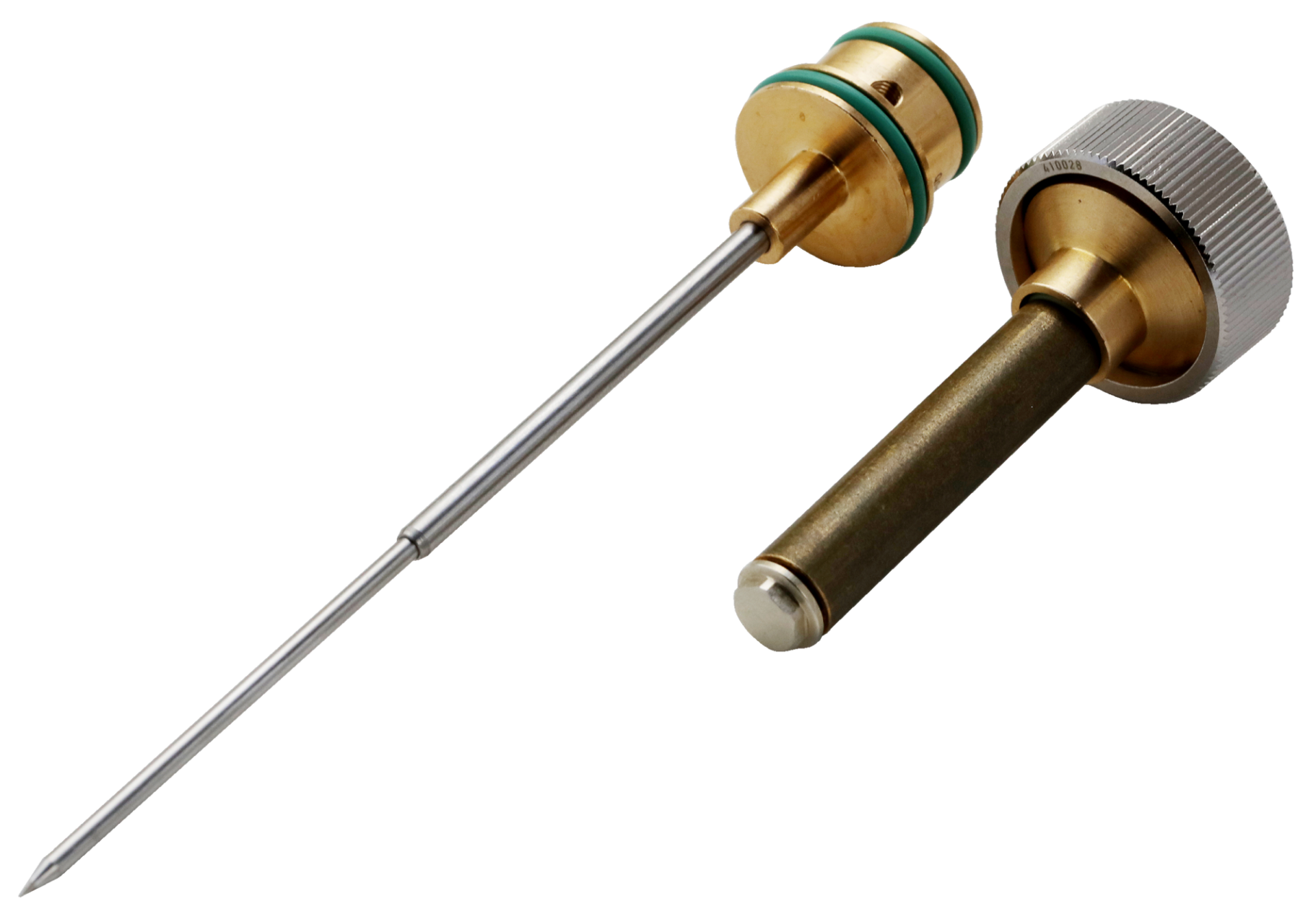

Nozzle Eextension needle-sealing DVL-ND0 (Standard Nozzle / Ring jet 360°)
|
001065X | DVL-ND0-Dxx-Lxxx-RI360 | Standard Nozzle / needle-sealing | Ring jet 360° |
Nozzle Eextension needle-sealing DVL-ND0 (Standard Nozzle / Ring jet 360°)
Article No.
001065X
Modell
DVL-ND0-Dxx-Lxxx-RI360
Design
Standard Nozzle / needle-sealing
Version
Ring jet 360°
Nozzle Extension DVL, needle-sealing (ND0) Version without Swirl Nozzle
Selection of Nozzle Extension DVL-ND0
| Article No. | Model | Nozzle outside diameter (D) | Nozzle length (L) | Outlet Nozzle holes (number x dia. hole) |
|---|---|---|---|---|
|
0010652
|
DVL-ND0-D06-L050-RI360-B12x0.4-W000-A000-S00
|
6 mm
|
50 mm
|
12 x Ø 0.4 mm
|
|
0010653
|
DVL-ND0-D06-L075-RI360-B12x0.4-W000-A000-S00
|
6 mm
|
75 mm
|
12 x Ø 0.4 mm
|
|
0010654
|
DVL-ND0-D06-L100-RI360-B12x0.4-W000-A000-S00
|
6 mm
|
100 mm
|
12 x Ø 0.4 mm
|
|
0010656
|
DVL-ND0-D06-L050-RI360-B08x0.6-W000-A000-S00
|
6 mm
|
50 mm
|
8 x Ø 0.6 mm
|
|
0010657
|
DVL-ND0-D06-L075-RI360-B08x0.6-W000-A000-S00
|
6 mm
|
75 mm
|
8 x Ø 0.6 mm
|
|
0010658
|
DVL-ND0-D06-L100-RI360-B08x0.6-W000-A000-S00
|
6 mm
|
100 mm
|
8 x Ø 0.6 mm
|
|
0010659
|
DVL-ND0-D08-L050-RI360-B12x0.6-W000-A000-S00
|
8 mm
|
50 mm
|
12 x Ø 0.6 mm
|
|
0010660
|
DVL-ND0-D08-L075-RI360-B12x0.6-W000-A000-S00
|
8 mm
|
75 mm
|
12 x Ø 0.6 mm
|
|
0010661
|
DVL-ND0-D08-L100-RI360-B12x0.6-W000-A000-S00
|
8 mm
|
100 mm
|
12 x Ø 0.6 mm
|
|
0010662
|
DVL-ND0-D08-L050-RI360-B12x0.8-W000-A000-S00
|
8 mm
|
50 mm
|
12 x Ø 0.8 mm
|
|
0010663
|
DVL-ND0-D08-L075-RI360-B12x0.8-W000-A000-S00
|
8 mm
|
75 mm
|
12 x Ø 0.8 mm
|
|
0010664
|
DVL-ND0-D08-L100-RI360-B12x0.8-W000-A000-S00
|
8 mm
|
100 mm
|
12 x Ø 0.8 mm
|
The Nozzle Extension DVL, needle-sealing (ND0) have been specially developed for applications in which only very little space is available for installation in machines or robots, or where spraying must be carried out through or into very small openings.
This Nozzle Extension DVL with the Spray Head Ring jet 360° is ideally suited for internal spraying of cylindrical hollow bodies, e.g. pipes.
The Needle-sealing Nozzle Extensions have very little dead space.
This means that even low-viscosity materials can be processed without the extensions running empty in the overhead position.
