Grease Pumps

Grease Pumps 3757501 MURALT AX-II 1300 cm3 / Chain M10 x 1 for Lubricant

Grease Pumps

Status
Discarded Article
Article No.
3757501
Modell
MURALT AX-II
Design
1300 cm3 / Chain
Version
M10 x 1 for Lubricant

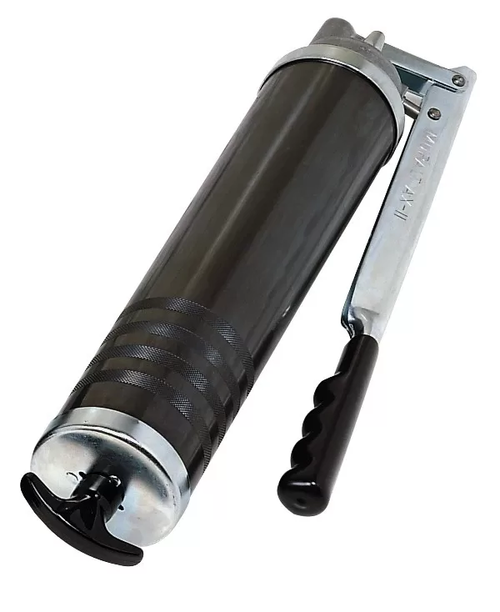

Grease Pumps Bild
Attention: Phased-out model! New Article-No.: 3754800

This hand lever press 1300 cm3 is equipped with extra strength spring and by means of a deflection sheave (chain lift = half effort) – ideal also for high viscosity lubricant (up to NLGI 3) with no restrictions.

Especially suitable for heavy-duty applications such as railways, mobile cranes, assembly and maintenance.

Connection medium outlet: M10x1 internal thread.

Spare Parts:

You will find more information in the downloads section under ''Seal Kit'' and ''Spare Parts List''

Description Article No.

Seal Kit

3083400

Pump head cpl.

3750012

Cylinder cpl.

3831000

Technical Data
Capacity cylinder [cm3]
1300
Cylinder external dia. [mm]
80
Cylinder wall thickness [mm]
2.0
Cylinder lenght [mm]
330
Filled with 400 g grease cartridges DIN 1284
NO
Filling by hand or with filling machine
YES / 1300 g
Input medium specification
Lubricants up to NLGI 3 / 5000 m Pa s.
Delivery rate per stroke [cm3]
1.4
Operating pressure [bar]
400
Max. pressure [bar]
600
Connection medium inlet internal thread
M10 x 1
Connection filter cap "F" internal thread
M10 x 1
Connection air vent "E" internal thread
M8 x 1
Min. / max. operatingtemperature [°C]
10 /40
Weight [kg]
2.775
Downloads
Document

Dimensioned Sketch

Document

Spare Parts List

Document

Operating Manual
