With this Outlet Valve with Handle Horizontal HG, the connection for the lubricant supply and air supply can be used either horizontally or vertically, which makes this Valve versatile.
How can we help you?

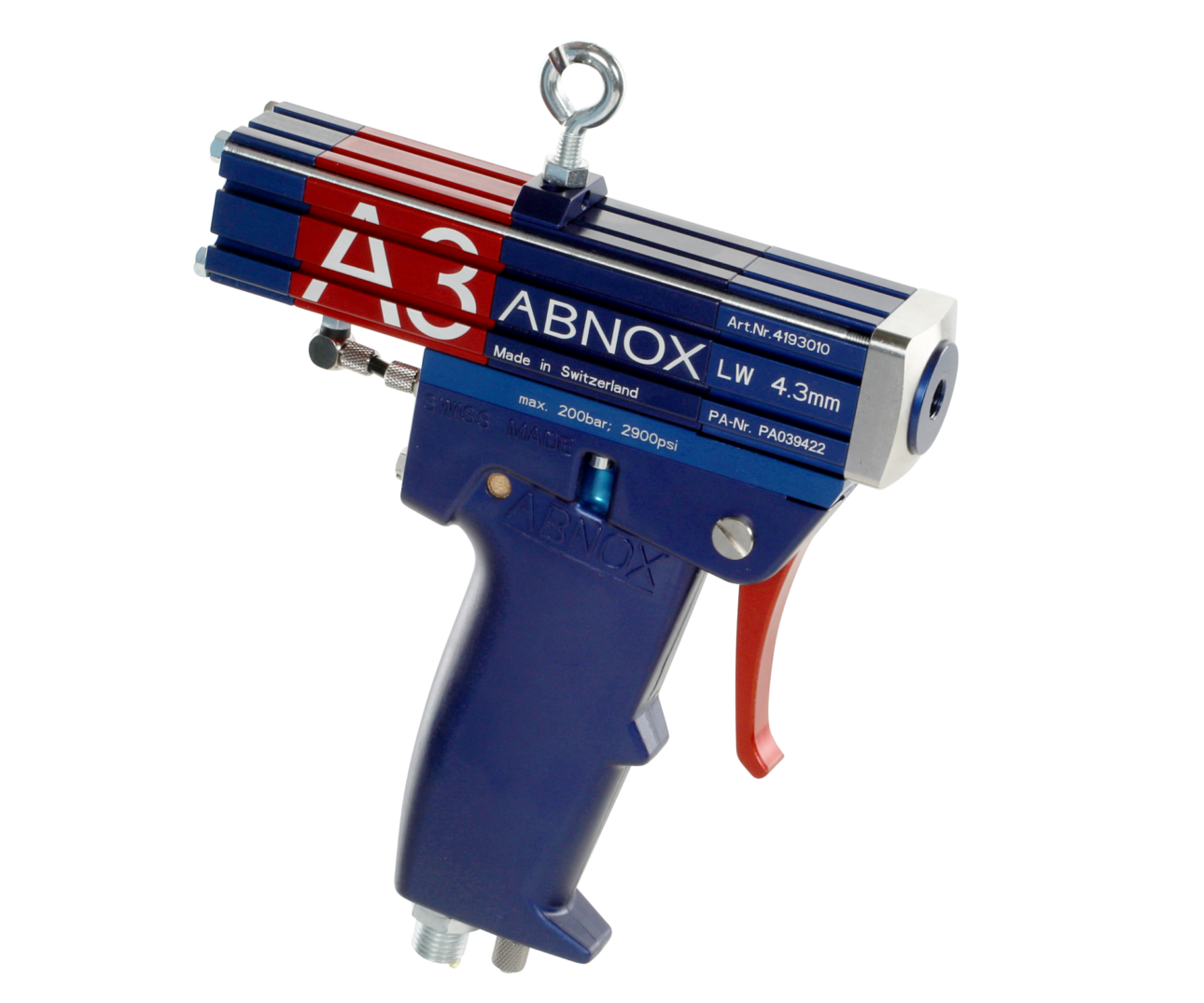

Outlet Valve AXDV-A3-HG-G1/8
|
4193010 | AXDV-A3-HG-G1/8 (V3.0) | Handgrip Horizontal | Clearance 4.3 mm / with 1/8'' BSP Connection |
Outlet Valve AXDV-A3-HG-G1/8
Article No.
4193010
Modell
AXDV-A3-HG-G1/8 (V3.0)
Design
Handgrip Horizontal
Version
Clearance 4.3 mm / with 1/8'' BSP Connection
Seal Kit
| Description | Article No. |
|---|---|
|
Seal Kit |
0006886 |
Technical Data
Clearance width [mm]
4.3
Input medium specification
Lubricants up to NLGI 3 / max. 1'000'000 mPa.s
Max. workingpressure medium inlet [bar]
200
Connection medium inlet internal thread
1/8'' BSP
Connection medium inlet external thread
1/4'' BSP
Connection medium outlet internal thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
Optimum pneumatic operatingpressure [bar]
6.0
Min. pneumatic operatingpressure [bar]
5.0
Max. pneumatic operatingpressure [bar]
7.0
Pneumatic connection internal thread
M5 for hose ø6/4 mm
Weight [kg]
1.50
Further information can be found below in the Downloads section under ''Spare Parts List / Seal Kit''.
