Product information
Pumping highly viscous lubricants demands the right technology for this demanding task.A pneumatic lifting device facilitates optimal suction and complete drainage of the container. An empty state detector serves to switch off the pump when the low fill level has been reached, thus preventing the aspiration of air.
The ideal solution for your lubrication tasks! The Air-operated Grease Supply System mINI type S is suitable for transferring of lubricants of medium to high viscosity levels as well as silicon greases and silicon oils and is suitable for all containers 1 kg up to 5 kg available on the market.
The Grease Supply System mINI with pressure ratio from 25:1 type S is ideal applicable as feeding pump for ABNOX metering valves or as filling system.

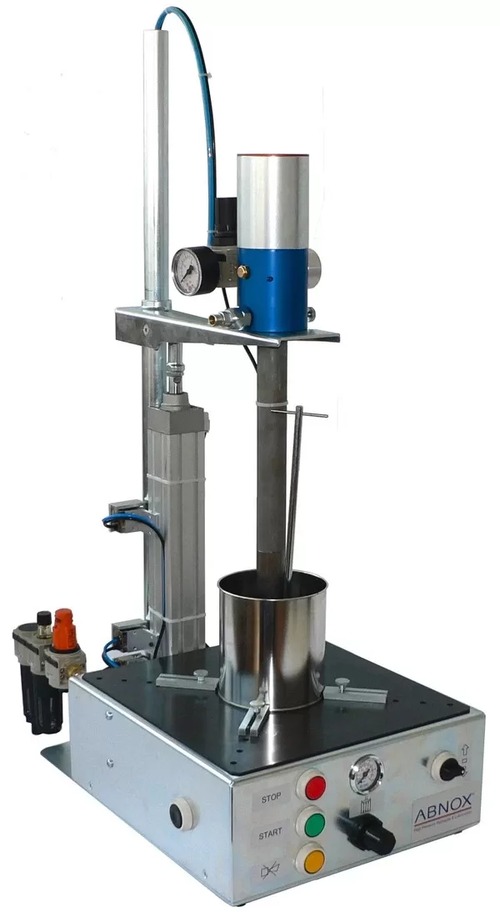

This Pumpsystem mINI is consisting an air-operated grease pump and a pump lifter including control with two-hand operating.
Separate to the grease supply system the selection of the follower plate will be made according to the container size (see accessories).
Remark:
When ordering, please indicate internal diameter (from top and down) and the height of the container and the type of lubricant.Caution: Attention to circumferential flanging at the container!
Attention:
Note the circumferential flanging on the container!

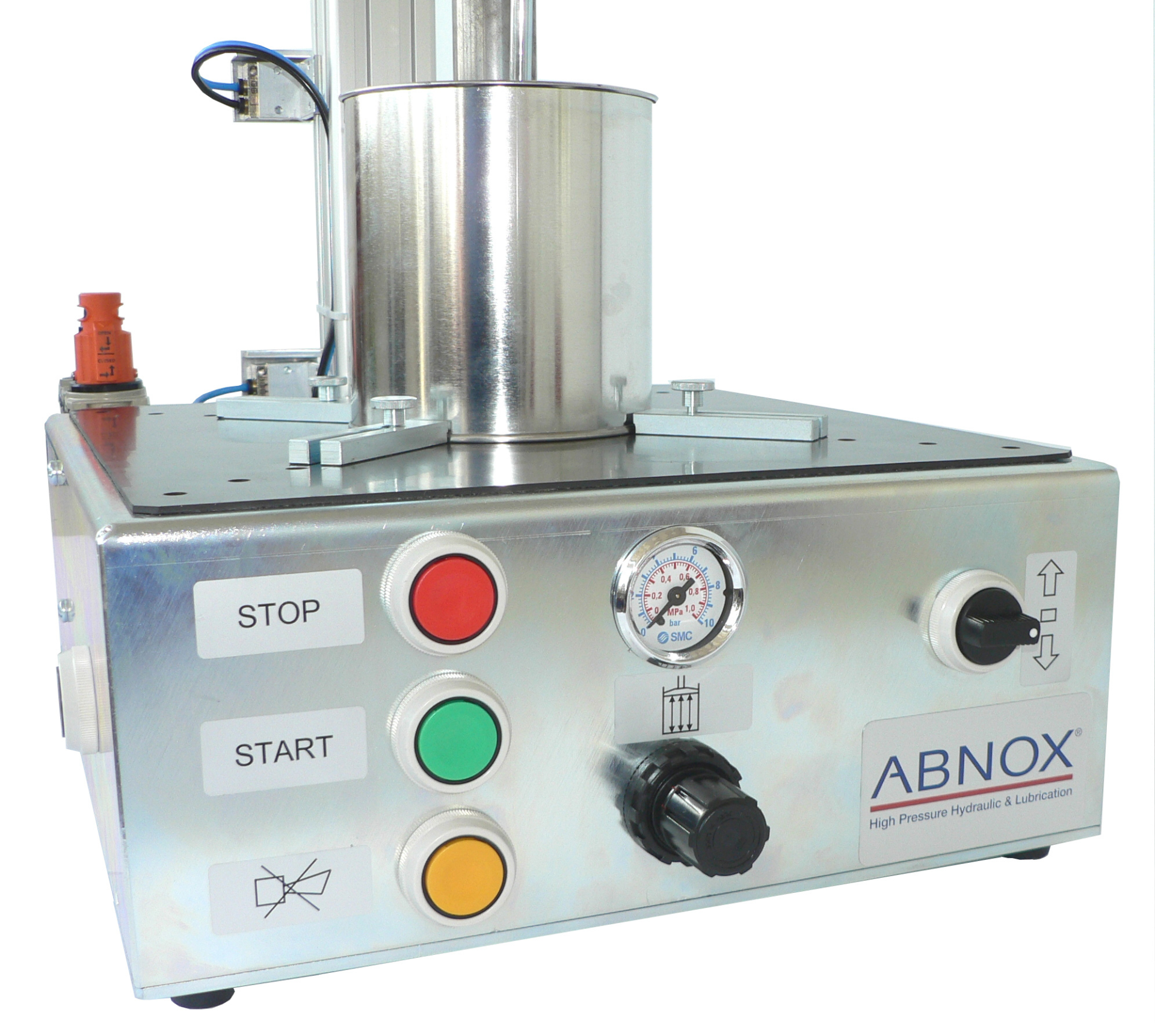

Frontal view with press button to START- and STOP the supply pump, pressure regulating valve with pressure gauge for follower plate pressure and mode switch UP, HOLD and DOWN for the pneumatic lifting device
Container internal dia. [mm]
80 - 300
Container height [mm]
300
Suction tube dia. [mm]
32
Translation
This Air-operated Grease Pump from type S is qualified for delivering silicon greases and silicon oils with a viscosity up to 60'000 cST.Not suitable for hardening and abrasive media, or with abrasive filling substances!
Input medium specification
Lubricants up to NLGI 3 / 500'000 m Pa s
Delivery rate at pump outlet [cm3/min]
1295
Delivery rate per double stroke [cm3]
17
Min. / max. workingpressure medium inlet [bar]
4/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
140
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
233
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
