Can Pump AXKP1-S

Can Pump AXKP1-S 000763X AXKP1-S V3.0 1 up to 5 kg / Cartridges 400 g (DIN 1284)

Can Pump AXKP1-S

Article No.
000763X
Modell
AXKP1-S
Design
V3.0
Version
1 up to 5 kg / Cartridges 400 g (DIN 1284)

This model is suitable for containers ranging from 1 to 5 kg or for cartridges of 400 g according to DIN 1284.

Character features of ABNOX Can Pump AXKP:

  • Compact design
  • Supply direct from original container
  • Long life time product
  • Exchangeable follower plate
  • Pump stop with audible „container empty“ Signal (option)

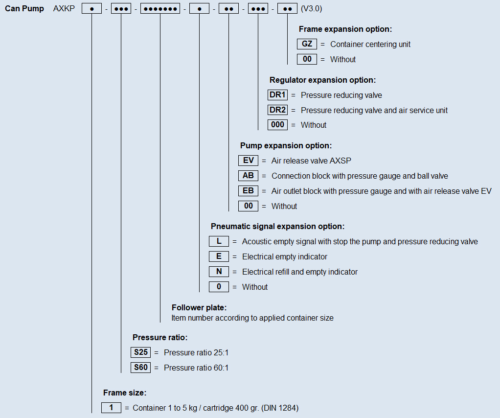

Type code for Can Pumps AXKP1-S
Selection Can Pumps AXKP1-S
Model Ratio Container size Article No.
AXKP1-S25
25:1
1 up to 5 kg / Cartridges 400 g (DIN 1284)
0007631
AXKP1-S60
60:1
1 up to 5 kg / Cartridges 400 g (DIN 1284)
0007632

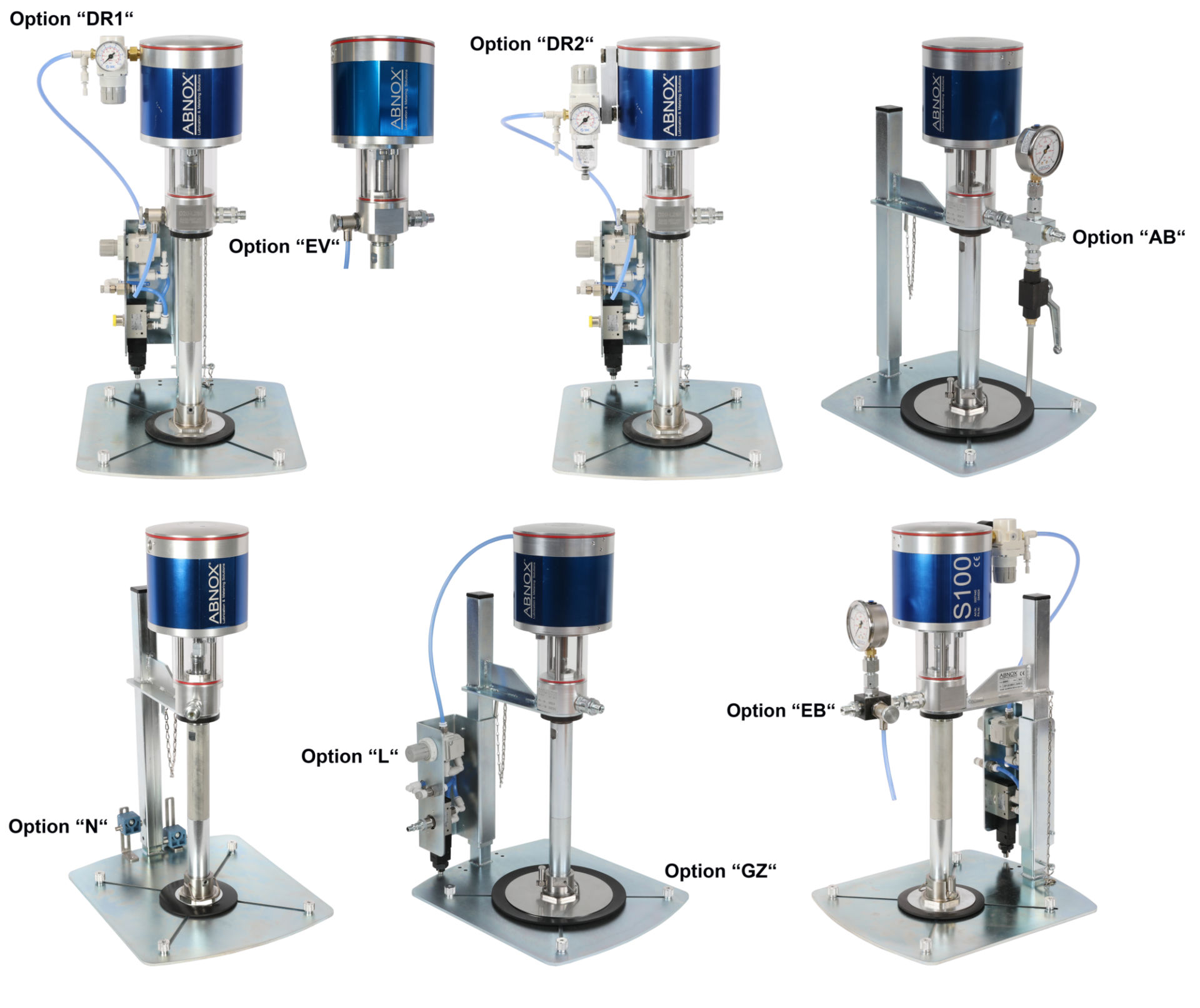

Upgrading options
Option Description Article No.
GZ
Container Centering unit set
DR1
Pressure Reducing Valve 0-10 bar with fittings and connection for Metering Valve with Handgrip
DR2
Pressure Release Valve 0-10 bar with Water Separator/ Maintenance Unit
EV
Air Release Valve directly on the Lubrication Pump AXSP
AB
Connection Block 1/4'' BSP with Pressure Gauge 400 bar and Ball Valve for air vent
EB
Air Outlet Block 1/4'' BSP with Pressure Gauge 400 bar and with Air Release Valve ''EV''
L
Acoustic warn Signal "container empty" with stop the Pump
E
Electric low level Indicator "container empty"
N
Electric refill and low lever Indicator "container empty"
Technical Data
AXKP1-S25 AXKP1-S60
Article No.
7631
7632
Pressure ratio
25:1
60:1
Container internal dia. [mm]
80 - 300 (incl. Cartridge DIN 1284)
80 - 300 (incl. Cartridge DIN 1284)
Container height [mm]
max. 285
max. 285
Suction tube [mm]
32
32
Specification for operation medium
Lubrication up to NLGI 3/ 1'000'000 mPa.s
Lubrication up to NLGI 3/ 1'000'000 mPa.s
Delivery rate at pump outlet [cm3/min]
1'500
700
Delivery rate per double stroke [cm3]
31
13
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
150
360
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
250
600
Connection medium outlet external thread
1/4" BSP
1/4" BSP
Air Quality Standards
ISO 8573-1:2020 [6:4:4]
ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]
180
180
Optimum pneumatic operating pressure [bar]
6
6
Min. / max. pneumatic operating pressure [bar]
4/10
4/10
Pneumatic connection internal thread
1/4" BSP
1/4" BSP
Min. / max. operating temperature [°C]
10/40
10/40
