Accessories

Accessories 3639000 Connector flexible Adjustable / Brass 1/8'' BSP / Lubricant

Accessories

Status
Discarded Article
Article No.
3639000
Modell
Connector flexible
Design
Adjustable / Brass
Version
1/8'' BSP / Lubricant
Accessories Bild

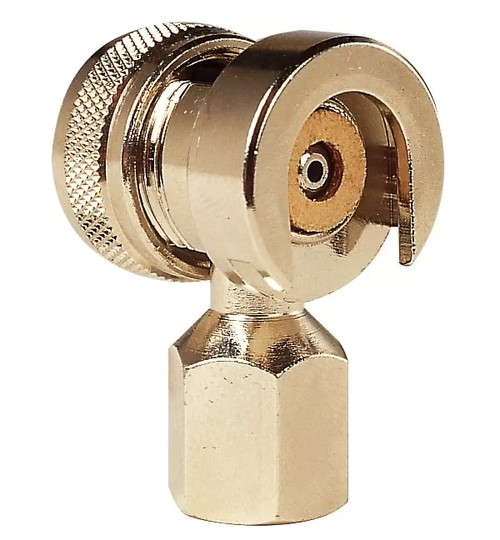

Adjustable Connector for button head grease nipple A2

This Connector enables safe and clean lubrication of the button head grease nipple type A2 according to DIN 3404 with a head diameter of 16 mm. By means of the adjustable bending screw, the connector with leather sealing can be clamped firmly onto the lubrication nipple.Thanks to the possibility to install the head piece turned by 180°, this connector can be used for coupling and uncoupling either by pulling or pushing. This flexibility can be a great advantage especially in tight installation situations!

Technical Data
Area of application for greasenipples type
A2 (DIN 3404)
Operating pressure [bar]
200
Max. pressure [bar]
400
Connection internal thread
1/8'' BSP
External diameter [mm]
22
Width across flats [mm]
14
Downloads
Document

Dimensioned Sketch
