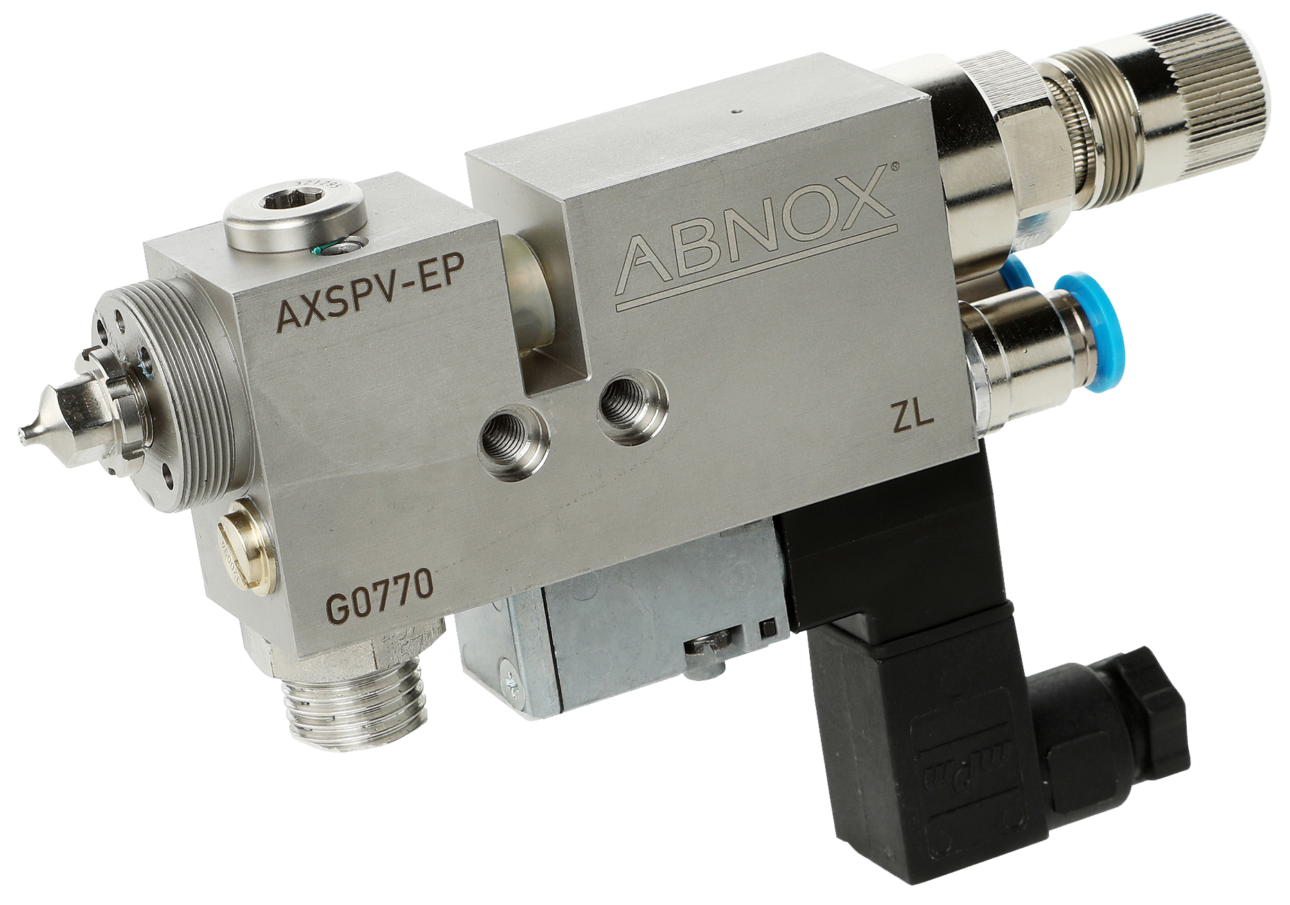

This Electro-pneumatic Spray Valve AXSPV-EP is equipped with a Standard Nozzle Needle and Standard Nozzle Ø 1.0 mm.
How can we help you?
Electro-pneumatic Spray Valve AXSPV-EP-STD-1.0-S00-DS0-RNV-24VDC
|
0010462 | AXSPV-EP-STD-1.0-S00-DS0-RNV-24VDC | Standard Nozzle dia. 1.0 mm | Electro-pneumatic, 24 VDC |
Electro-pneumatic Spray Valve AXSPV-EP-STD-1.0-S00-DS0-RNV-24VDC
Article No.
0010462
Modell
AXSPV-EP-STD-1.0-S00-DS0-RNV-24VDC
Design
Standard Nozzle dia. 1.0 mm
Version
Electro-pneumatic, 24 VDC
Connection diagram / Circuit diagram:
- Atomizing air connection ZL: to compressed air supply
- Control air connection SL: to compressed air supply (Compressor)
- Material / Medium connection M: to Pressure Tank or Pump
This Electro-pneumatic Spray Valve AXSPV-EP is equipped with:
| Specification | Quantity | Article No. |
|---|---|---|
|
Standard Nozzle dia. 1.0 mm
|
1
|
0009960
|
|
Nozzle Needle to Standard Nozzle dia. 1.0 mm
|
1
|
0010480
|
|
5/2-way Solenoid Valve 24 VDC / 1.8 W and integrated spray air control
|
1
|
0012214
|
|
Latching Needle Lock RNV without Electrical Needle Sensor for easy adjustment of the material quantity
|
1
|
|
|
Centring for Air Cap LFK or Nozzle Extension DVL
|
1
|
|
|
Countersinks including centring sleeves (mounting)
|
2
|
The following options are available:
| Description | Article No. |
|---|---|
|
Nozzle Extension DVL (see accessories) |
|
|
Air Cap LFK (see accessories) |
|
|
Retaining Ring for Air Cap LFK |
|
|
Pressure Sensor DS1, 0 - 5 bar |
|
|
Pressure Sensor DS2, 0 - 50 bar |
|
|
Raster Needle Lock RNA with Electrical Needle Sensor |
|
|
Valve Heater VH |
0010471 |
|
Connection Cable M12x1, 4 poles, Length 10.0 m for Valve Heater VH |
|
|
Temperature Controller Set AXTR-024VDC-03500 with two alarm outputs, connection with Valve Heater VH |
|
|
Fine Material Pressure Regulator Modular Unit with electronic pressure switch and manual venting |
0013088 |
The following are available as spare parts:
| Description | Article No. |
|---|---|
|
Wearing Parts Kit including sealing screw for medium and air area |
0016697 |
|
Air Valve complete, automatic pre- and after-air control |
0011339 |
|
Cable Plug, 15 x 15mm, 3-pole, for 5/2-way Solenoid Valve 24 VDC |
0012220 |
|
Cable Plug, 15 x 15 mm, 2-pole and earth, with function LED and freewheel dieode for 5/2-way Solenoid Valve 24 VDC |
0012224 |
Technical Data
"M" Material pressure [bar]
35
Connection medium inlet internal thread
1/8'' BSP
Compressed air quality
ISO 8573-1:2020 [6:4:4]
"SL" Control air pressure [bar]
5 - 6
"ZL" Atomizing air pressure [bar]
0.5 - 5
Pneumatic connection internal thread
1/8'' BSP / Push-in fitting for hose dia. 6 mm
Switching frequency [Hz]
up to 30 cycles per second
Voltage [V DC]
24
