MDR-Material Pressure Regulator Module Unit
|
0010XXX | MDR-Module Unit | 5 - 50 bar | Standard |
MDR-Material Pressure Regulator Module Unit
Selection of MDR Module Units:

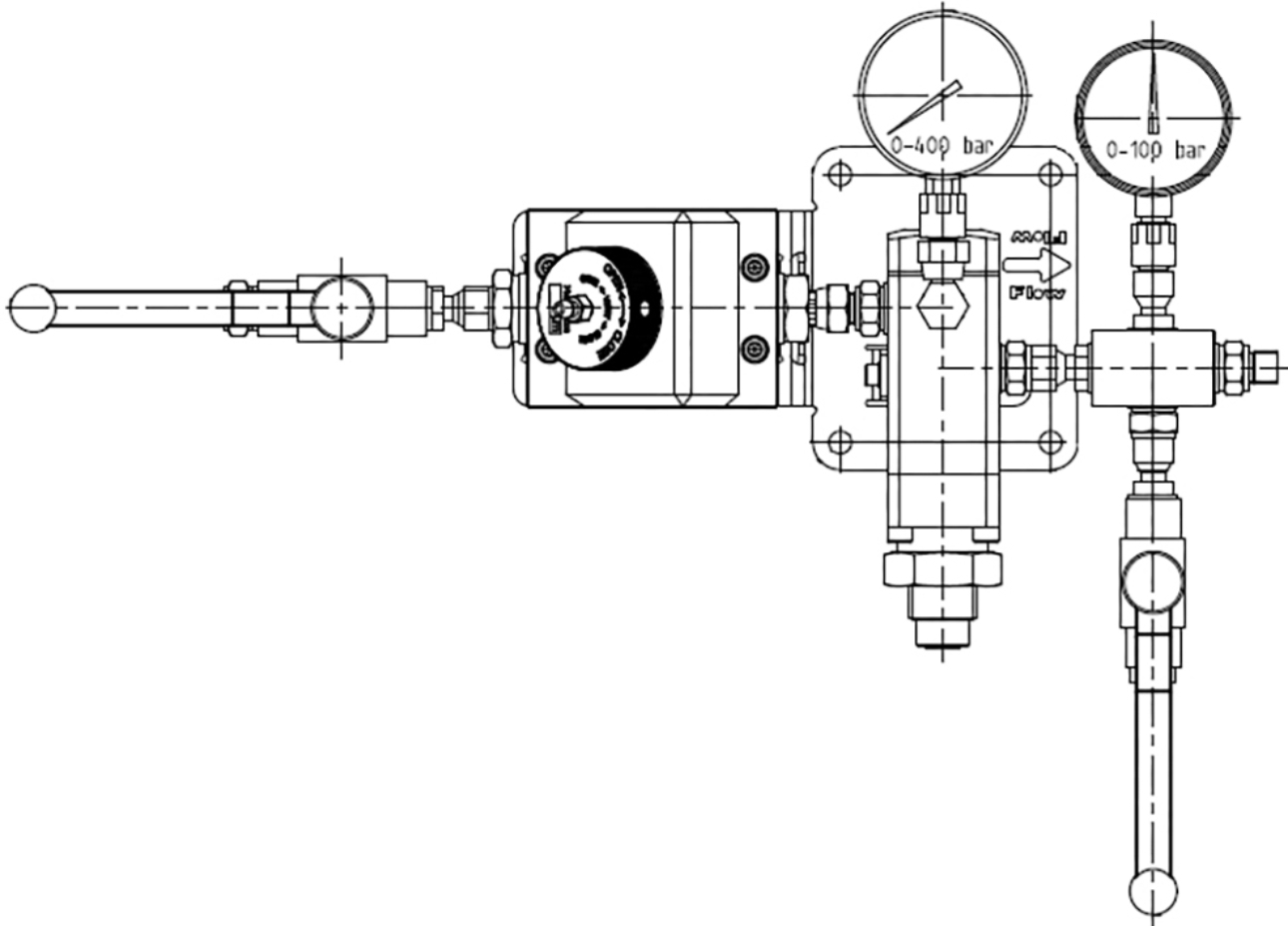

MDR Module Unit consisting of components:
MDR Module Unit consisting of components:
MDR Module Unit consisting of components:
MDR Module Unit consisting of components:
MDR Module Unit consisting of components:
| Description | Article No. |
|---|---|
|
Medium Inlet Stopcock 1/4" BSP |
|
|
Material Pressure Regulator with Inlet Pressure Gauge |
|
|
Connection Block 1/4" BSP with Outlet Pressure Gauge and Stopcock for manual venting |
|
|
Electric 2/2-way Outlet Valve for automatic pressure relief or venting of the system |
0009897 |
MDR Module Unit consisting of components:
| Description | Article No. |
|---|---|
|
Medium Inlet Stopcock 1/4" BSP |
|
|
Material Pressure Regulator with Inlet Pressure Gauge |
|
|
Connection Block 1/4" BSP with Stopcock for manual venting |
|
|
Electrical Outlet Pressure Switch with Display |
|
|
Electric 2/2-way Outlet Valve for automatic pressure relief or venting of the system |
0009897 |

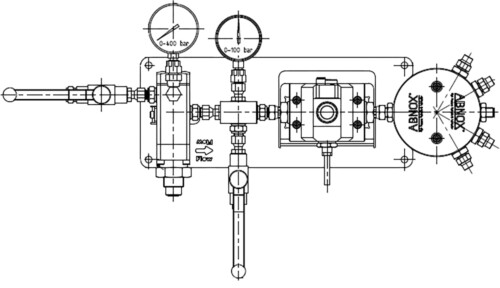

MDR Module Unit consisting of components:
| Description | Article No. |
|---|---|
|
Medium Inlet Stopcock 1/4" BSP |
|
|
Material Pressure Regulator with Inlet Pressure Gauge |
|
|
Connection Block 1/4" BSP with Outlet Pressure Gauge and Stopcock for manual venting |
|
|
Electric 2/2-way Outlet Valve for automatic pressure relief or venting of the system |
0009897 |
|
5-ways Manifold with Fittings 1/4" BSP |
MDR Module Unit consisting of components:
| Description | Article No. |
|---|---|
|
Medium Inlet Stopcock 1/4" BSP |
|
|
Material Pressure Regulator with Inlet Pressure Gauge |
|
|
Connection Block 1/4" BSP with Stopcock for manual venting |
|
|
Electrical Outlet Pressure Switch with Display |
|
|
Electric 2/2-way Outlet Valve for automatic pressure relief or venting of the system |
0009897 |
|
5-ways Manifold with Fittings 1/4" BSP |
MDR Module Unit consisting of components:
| Description | Article No. |
|---|---|
|
Medium Inlet Stopcock 1/4" BSP |
|
|
Filter Housing AFS-01 with Filter insert 300 [µm] Meshsize (Art.-no. 0009856) |
|
|
Material Pressure Regulator with Inlet Pressure Gauge |
|
|
Connection Block 1/4" BSP with Outlet Pressure Gauge and Stopcock for manual venting |

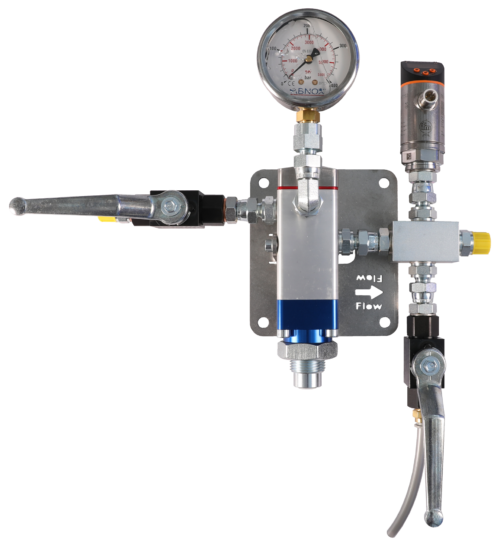

MDR Module Unit consisting of components:
| Description | Article No. |
|---|---|
|
Medium Inlet Stopcock 1/4" BSP |
|
|
Filter Housing AFS-01 with Filter insert 300 [µm] Meshsize (Art.-no. 0009856) |
|
|
Material Pressure Regulator with Inlet Pressure Gauge |
|
|
Connection Block 1/4" BSP with Stopcock for manual venting |
|
|
Electrical Outlet Pressure Switch with Display |
Design for grease flow direction from RIGHT to LEFT
MDR Module Unit consisting of components:
| Description | Article No. |
|---|---|
|
Medium Inlet Stopcock 1/4" BSP |
|
|
Filter Housing AFS-01 with Filter insert 300 [µm] Meshsize (Art.-no. 0009856) |
|
|
Material Pressure Regulator with Inlet Pressure Gauge |
|
|
Connection Block 1/4" BSP with Outlet Pressure Gauge and stopcock for manual venting |
MDR Module Unit consisting of components:
| Description | Article No. |
|---|---|
|
Medium Inlet Stopcock 1/4" BSP |
|
|
Filter Housing AFS-01 with Filter insert 300 [µm] Meshsize (Art.-no. 0009856) |
|
|
Material Pressure Regulator with Inlet Pressure Gauge |
|
|
Connection Block 1/4" BSP with Stopcock for manual venting |
|
|
Electrical Outlet Pressure Switch with Display |
Design for grease flow direction from LEFT to RIGHT
