Drum Pumps 4641000 20:1 Standard 2 x 180 kg

Drum Pumps

Status
Discarded Article
Article No.
4641000
Modell
20:1
Design
Standard
Version
2 x 180 kg

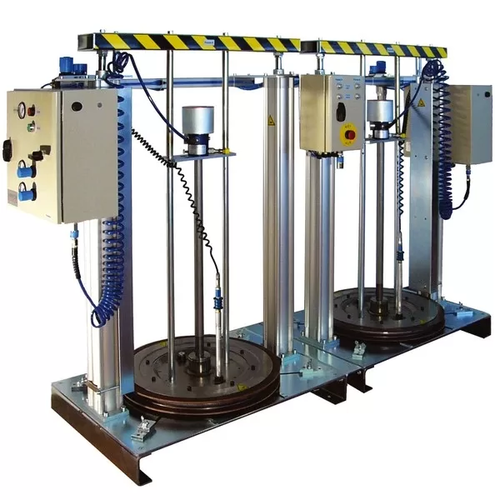

Drum Pumps Bild

ABNOX Twin-Drum Pump is suitable for transferring lubricants of medium to high viscosity levels. This Twin-Drum Pump facilitates an efficient transferring lubricants of large flow rates and frequent change of container (for central grease supply).

After the first container is complete empty, the system will automatically stop the pump and switch to the other with the full container. That helps to avoid disruption in the grease supply during container changing.

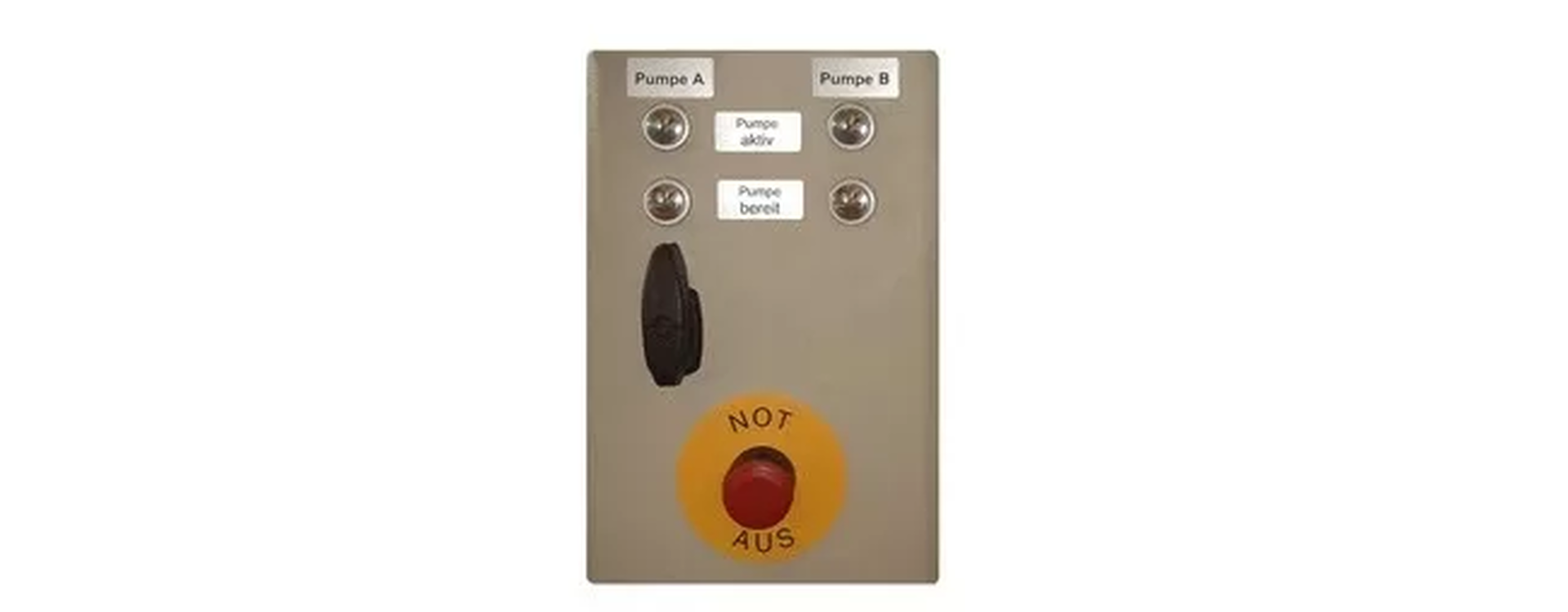

In the medium operating panel the actual state of the two pumps is indicated by coloured indicators (pump ready, pump at work).

Medium operating panel
Steuerkasten doppelfasspumpe
Furthermore, the pump combines the advantages of the single drum delivery pump as:

• Pump lift cylinder for easy container changing
• Two hand controlling
• Pressure gauge for system, pump unit and pump lift cylinder
• Automatic shutoff: an end switch stops the pump action and sends a warning tone (optional) when the
complete draining has been reached

The Twin-Drum Pump is available in various pressure ratio.

Character features of ABNOX - Drum Pumps:

• Modular design
• Operator convenience
• Two hand operation
• Long life time product
• Components harmonised perfectly with each other
• For large flow rates. Suitable for centralized supply pump
• Usable also for low temperatures
• No electric connector
• Exchangeable follower plate
• Adjustable pressure at the follower plate

Upgrading options

We are happy to calculate the follower plate for you.

To come up with the right size we need the following:

- internal top-diameter
- internal bottom-diameter
- container height

Upgrading options Article No. Quantity
Connection piece 1/4'' BSP with gauge 400 bar and ball valve for air vent
2 pieces
Technical Data
Container internal dia. [mm]
550 - 580
Container height [mm]
870
Suction tube dia. [mm]
32
Input medium specification
Lubricants up to NLGI 4 / 1'000'000 m Pa s
Delivery rate at pump outlet [cm3/min]
890
Delivery rate per double stroke [cm3]
7.5
Min. / max. workingpressure medium inlet [bar]
4/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
115
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
150
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
4/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
Downloads
Document

Dimensioned Sketch

Document

Spare Parts List

Document

Operating Manual Part 1

Document

Operating Manual Part 2
