Product information

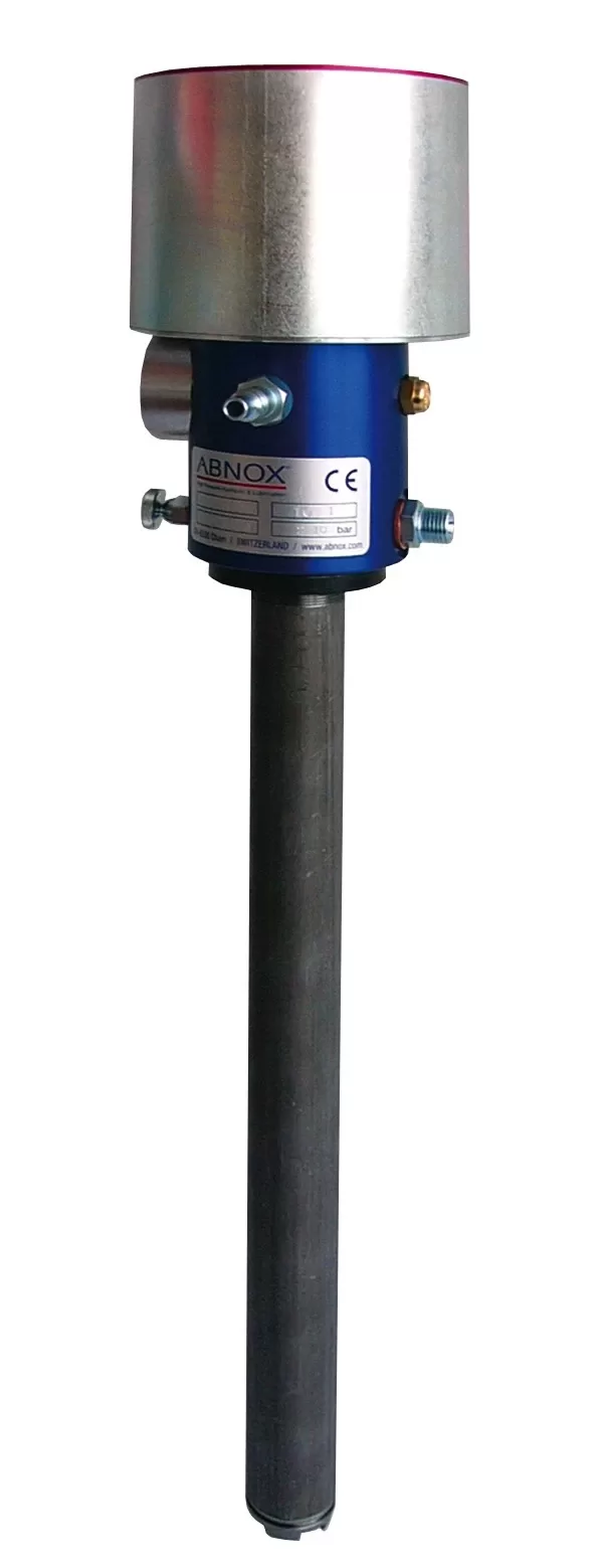

The Air-operated Grease Pump with pressure ratio from 60:1 is designed to lubricate machinery and all mechanical equipment.
This Air-operated Grease Pump is renowned for their high efficiency as well as their extremely low noise levels.
Outstanding reliability due to high quality materials, seals and special change-over valve.
Recommendation:
Never let the pump system and especially not the suction tube rest on the floor.
Keep them away from dirt, you will avoid damage to the pump and expensive repairs.
Container size [kg]
1 - 5
Container height [mm]
380
Suction tube dia. [mm]
32
Suction tube length [mm]
402
Input medium specification
Lubricants up to NLGI 3 / 5'000 m Pa.s
Delivery rate at pump outlet [cm3/min]
500
Delivery rate per double stroke [cm3]
7.5
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
335
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
555
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
217
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
