Product information

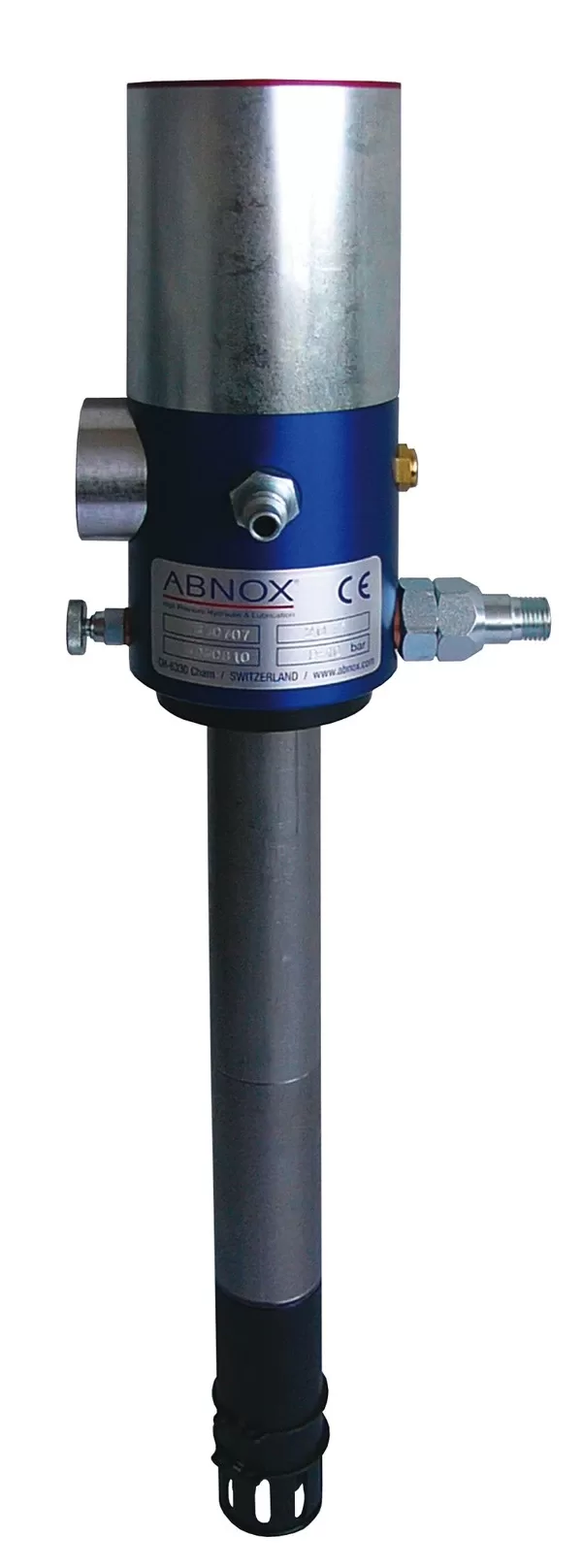

The Air-operated Grease Pump with pressure ratio from 20:1 is ideal applicable as feeding pump for ABNOX metering valves or as filling system.
This Air-operated Grease Pump is renowned for their high efficiency as well as their extremely low noise levels.
Outstanding reliability due to high quality materials, seals and special change-over valve.
Recommendation:
Never let the pump system and especially not the suction tube rest on the floor.
Keep them away from dirt, you will avoid damage to the pump and expensive repairs.
Container size [kg]
180
Container height [mm]
1185
Suction tube dia. [mm]
32
Suction tube length [mm]
1200
Input medium specification
Schmierstoffe bis NLGI 3 / 5'000 m Pa.s
Delivery rate at pump outlet [cm3/min]
890
Delivery rate per double stroke [cm3]
7.5
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
115
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/4'' BSP
Max. air consumption [l/min.]
150
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
