Product information

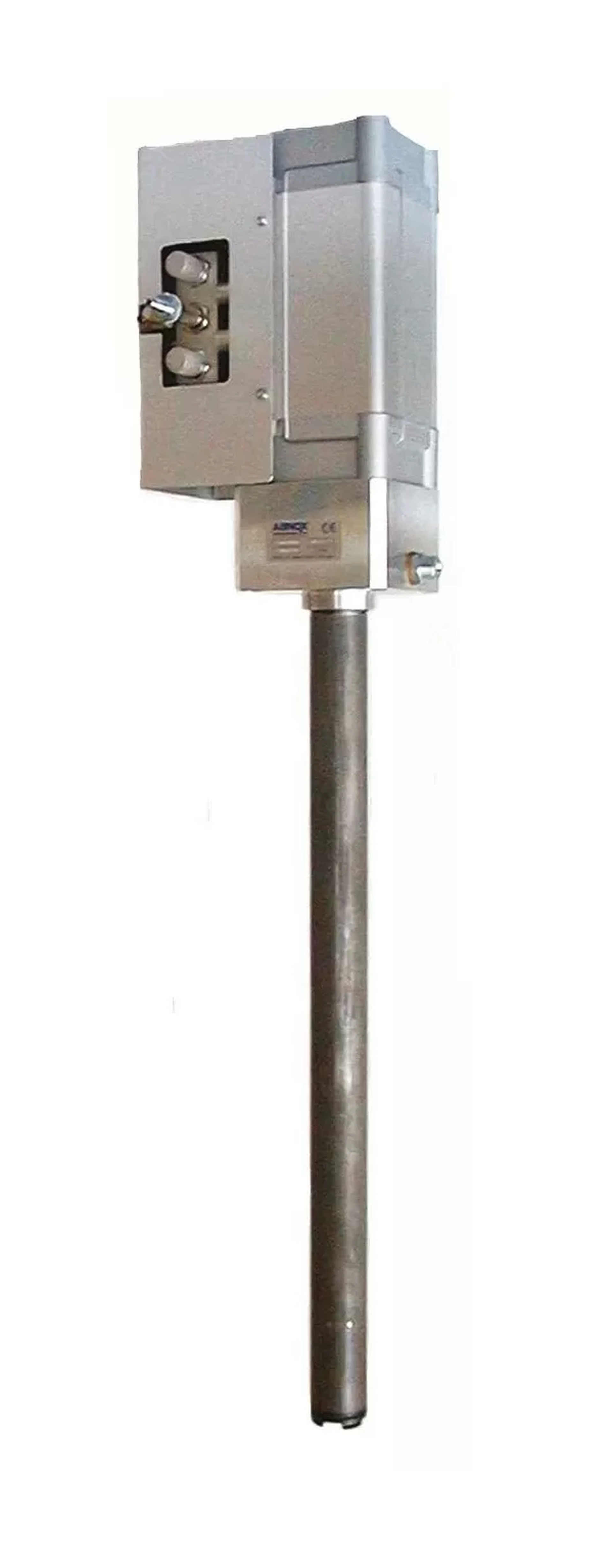

The Air-operated Mass Grease Pump mAXI with pressure ratio from 20:1 is ideally suited to lubricate a large bearing with the correct amount of grease, for packing grease into smaller containers and for supplying a ABNOX-dispensing valve of 30 to 500 cm3.
This Air-operated Mass Grease Pump mAXI is renowned for their high efficiency as well as their extremely low noise levels.
Outstanding reliability due to high quality materials, seals and special change-over valve.
Recommendation:
Never let the pump system and especially not the suction tube rest on the floor.
Keep them away from dirt, you will avoid damage to the pump and expensive repairs.
Container size [kg]
50
Container height [mm]
640
Suction tube dia. [mm]
50
Suction tube length [mm]
720
Input medium specification
Schmierstoffe bis NLGI 3 / 5'000 m Pa.s
Delivery rate at pump outlet [cm3/min]
6490
Delivery rate per double stroke [cm3]
152
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
105
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
Connection internal thread
3/8'' BSP
Connection medium outlet external thread
1/2'' BSP
Max. air consumption [l/min.]
1250
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
3/8'' BSP
Min. / max. operatingtemperature [°C]
10/40
