Product information

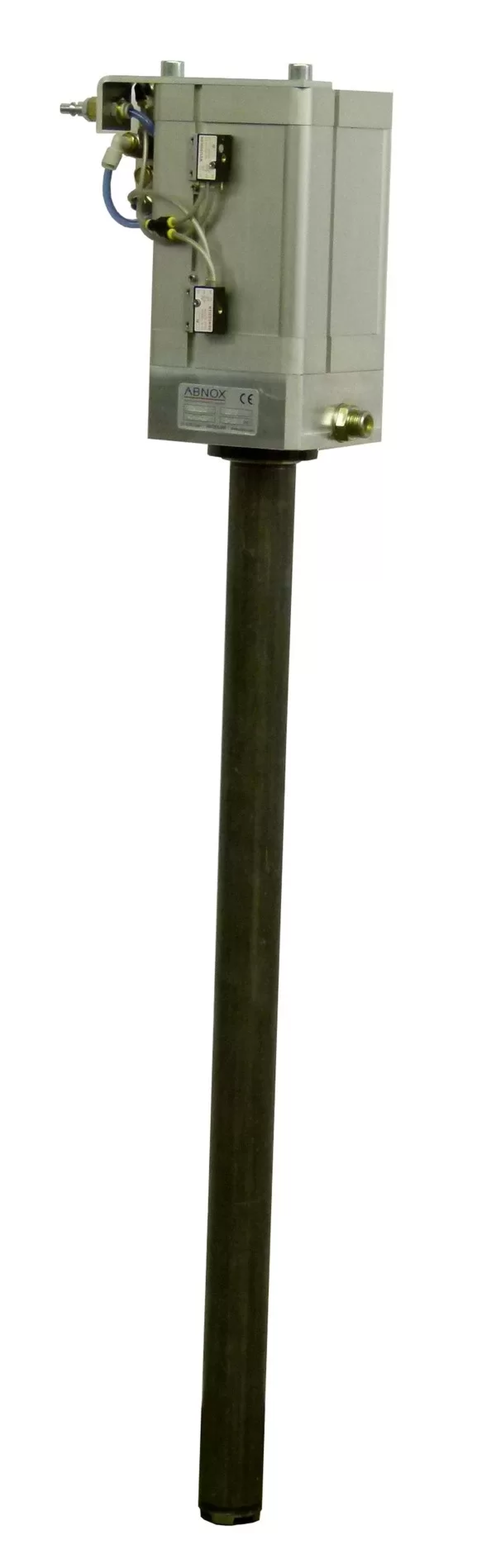

The Air-operated Mass Grease Pump mAXI with pressure ratio from 20:1 is ideally suited to lubricate a large bearing with the correct amount of grease, for packing grease into smaller containers and for supplying a ABNOX-dispensing valve of 30 to 500 cm3.
This Air-operated Mass Grease Pump mAXI is renowned for their high efficiency as well as their extremely low noise levels.
Outstanding reliability due to high quality materials, seals and special change-over valve.
Recommendation from ABNOX:
Use a maintenance unit when air supplying device contains humidity to prevent corrosion and fouling.
Use the original container and fit the right follower plate.
This will avoid air pockets.
Never leave the pump system on the suction tube on the floor.
Keep them away from dirt, you will avoid damage to the pump and expensive repairs.
Container size [kg]
50
Container height [mm]
720
Suction tube dia. [mm]
50
Suction tube length [mm]
722
Input medium specification
Schmierstoffe bis NLGI 3 / 5'000 m Pa.s
Delivery rate at pump outlet [cm3/min]
4242
Delivery rate per double stroke [cm3]
136
Min. / max. workingpressure medium inlet [bar]
2/10
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]
105
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]
191
Connection internal thread
1/4'' BSP
Connection medium outlet external thread
1/2'' BSP
Max. air consumption [l/min.]
920
Optimum pneumatic operatingpressure [bar]
6
Min. / max. pneumatic operating pressure [bar]
2/10
Pneumatic connection internal thread
1/4'' BSP
Min. / max. operatingtemperature [°C]
10/40
