Drum Pump AXFP-S-Slight

0016XXX

AXFP3-S-Slight

V1.0

up to 50 kg

Drum Pump AXFP-S-Slight

Article No.

0016XXX

Modell

AXFP3-S-Slight

Design

V1.0

Version

up to 50 kg

The ABNOX Drum Feed Pump Slight with 1-hand Control is the ideal and cost-effective Grease Supply System for the quick and easy delivery of medium to high viscosity lubricants.

Thanks to the constant contact pressure of the Follower Plate on the medium, the Follower Plate is always adjusted to the current fill level.

With the "empty signal with pump stop" removal option, the Pump switches off automatically when the fill level is low to prevent air from being sucked in.

Complete emptying of the original container prevents unnecessary grease loss.

Drum Pump AXFP3-S-Slight assembly

Type code for Drum Pumps AXFP3-S-Slight

Selection Drum Pumps AXFP3-S-Slight

Model	Ratio	Container size	Article No.
AXFP3-S25-Slight	25:1	up to 50 kg	0016271
AXFP3-S60-Slight	60:1	up to 50 kg	0016715

AXFP-S-Slight Drum Pump Assembly Kit for self-assembly

Note:

The Assembly Kit only contains the Base Frame!

The AXSP Lubrication Pump, the Follower Plate an the Ugrade Options must be ordered separately!

Description	Article No.
Assembly Kit Drum Pump AXFP-S-Slight	0016803

Selection of AXSP-S Lubricant Pumps for individual ordering together with the Assembly Kit

Model Drum Pump	Ratio	Model Feed Pump	Suction Tupe length Feed Pump	Article No. Feed Pump
AXFP3-S25-Slight	25:1	AXSP-S100-D20-L845	845 mm	0007426
AXFP3-S60-Slight	60:1	AXSP-S100-D13-L845	845 mm	0007434

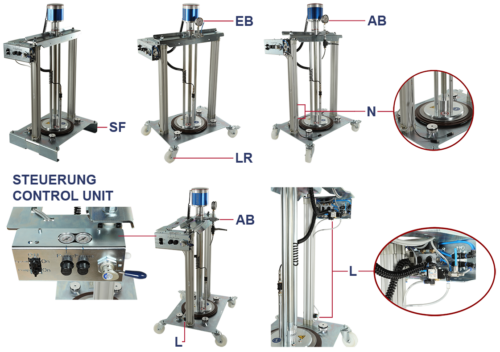

Upgrading options

Option	Description	Article No.
SF	Pedestal AXFP3	0008548
LR	4x Guide Rollers / Swivel Castor	0008569
AB	Connection Block 1/4" BSP with Pressure Gauge 400 bar and Ball Valve for air vent	4082001
EB	Air Outlet Block 1/4" BSP with Pressure Gauge 400 bar and with Air Release Valve	0008717
L	Acoustic container empty Signal with pump stop AXFP3	0015343
N	2x Electrical refill and empty Signal	0016717

Note for the shipping:

For all overseas shipments, the ABNOX Drum Pump AXFP3-S-Slight is packed in a plywood folding box according to ISPM standard 15.

Model Drum Pump	Dimension Plywood folding box	Article No. Plywood folding box
AXFP3-Sxx-Slight	80 x 60 x 145 cm	0003001

Technical Data

	AXFP3-S25-Slight	AXFP3-S60-Slight
Article No.	0016271	0016715
Ratio	25:1	60:1
Container size	up to 50 kg	up to 50 kg
Container internal dia. [mm]	175 - 455	175 - 455
Container height [mm]	700	700
Suction tube dia. [mm]	32	32
Specification for operation medium	Lubricants up to NLGI 4 / 1'000'000 mPa.s	Lubricants up to NLGI 4 / 1'000'000 mPa.s
Delivery rate at pump outlet [cm3/min]	1'500	700
Delivery rate pro double stroke [cm3]	31	13
Working pressure medium outlet at pneumatic operating pressure 6 bar [bar]	150	360
Working pressure medium outlet at pneumatic operating pressure 10 bar [bar]	250	600
Connection medium outlet external thread	1/4" BSP	1/4" BSP
Air Quality Standards	ISO 8573-1:2020 [6:4:4]	ISO 8573-1:2020 [6:4:4]
Max. air consumption [l/min.]	200	200
Optimum pneumatic operating pressure [bar]	6	6
Min. / max. pneumatic operating pressure [bar]	4 / 10	4 / 10
Pneumatic connection internal thread	1/4" BSP	1/4" BSP
Min. / max. operating temperature [°C]	10 / 40	10 / 40

Downloads

Dimensioned Sketch AXFP3-S25-Slight / -S60-Slight

Spare Parts List AXFP3-S25-Slight / -S60-Slight

3D-Data AXFP3-S25-Slight / -S60-Slight

Operating manual
