5-way Manifold / 1x Connection Compressed-air Input / 5x Connection Compressed-air Output
|
0017562 | 5-way Manifold | 1 Compressed-air input Connection | 5 Compressed-air output Connections |
5-way Manifold / 1x Connection Compressed-air Input / 5x Connection Compressed-air Output
Article No.
0017562
Modell
5-way Manifold
Design
1 Compressed-air input Connection
Version
5 Compressed-air output Connections
Connections 5-way Pneumatic Manifold with straight Push-in Fittings
| Connection compressed-air input for Pneumatic Hose | Connections compressed-air output for Pneumatic Hoses | Max. Pressure [bar] |
|---|---|---|
|
1x External dia. 6.0 mm
|
5x External dia. 6.0 mm
|
10
|

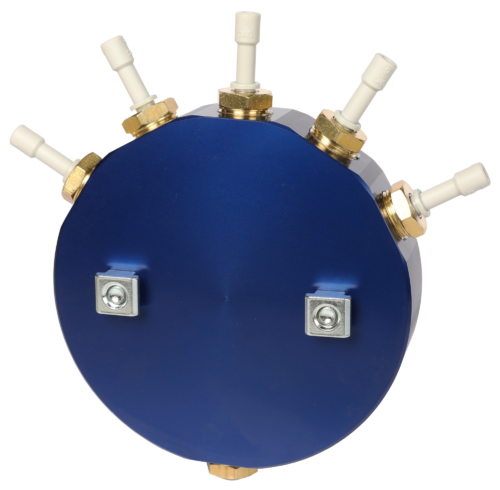

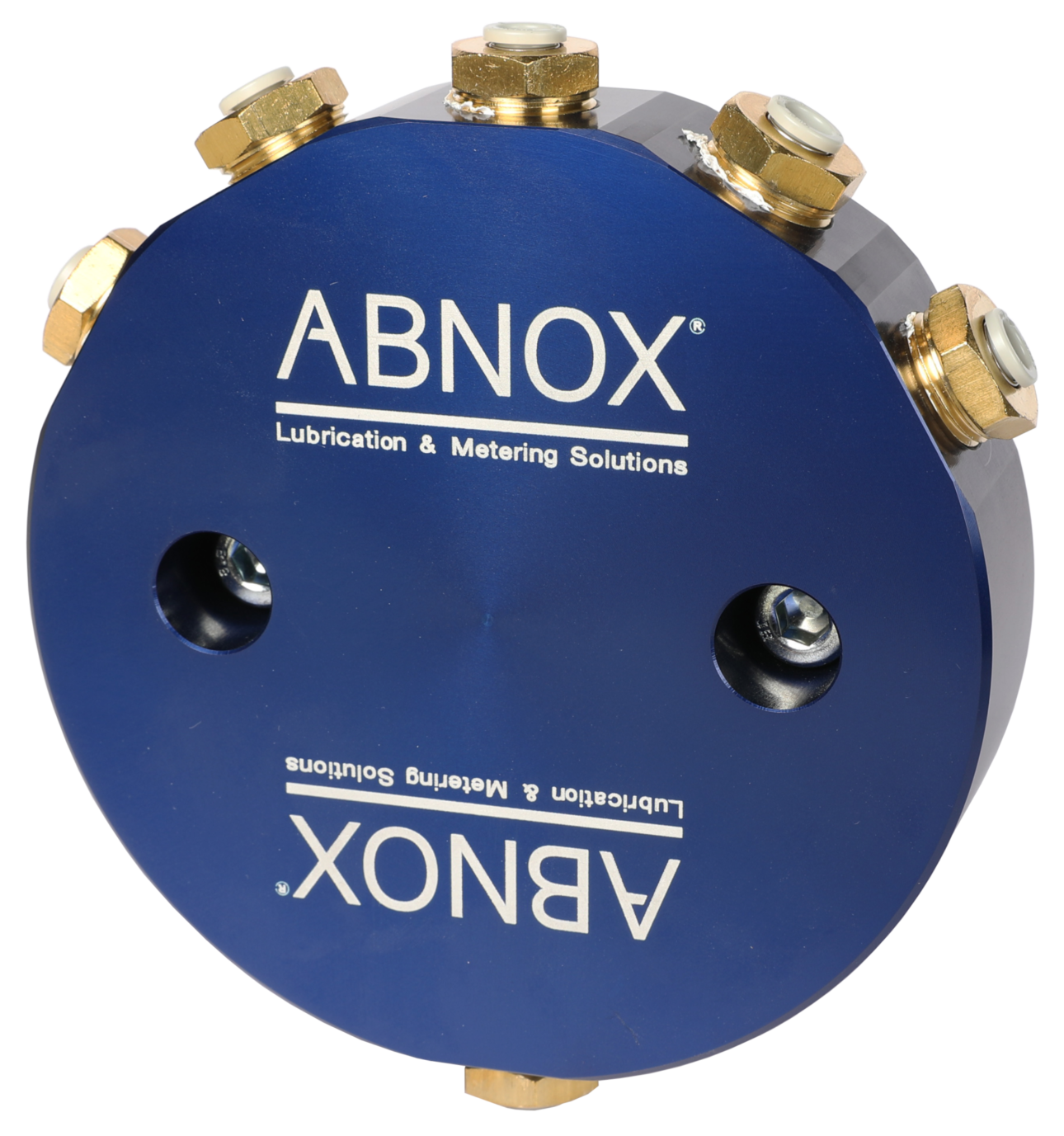

The 5-fold Pneumatic Distributor is designed for optimum distribution of the compressed air supply, e.g. for 5 ABNOX Dosing Valves.
Unused outlets can be sealed pressure-tight with Pneumatic Blind Plugs (Art.-No. 0002405).
Five Pneumatic Blind Plugs are included with this 5-way Manifold.
The M8x16 fastening Screws incl. Sliding Block (hole spacing 70 mm) included in the scope of delivery are suitable for fastening the Distributor.
