3-way Manifold / 1x Connection Compressed-air Input / 3x Connection Compressed-air Output
|
0017563 | 3-way Manifold | 1 Compressed-air input Connection | 3 Compressed-air output Connections |
3-way Manifold / 1x Connection Compressed-air Input / 3x Connection Compressed-air Output
Article No.
0017563
Modell
3-way Manifold
Design
1 Compressed-air input Connection
Version
3 Compressed-air output Connections
Connections 3-way Pneumatic Manifold with straight Push-in Fittings
| Connection compressed-air input for Pneumatic Hose | Connections compressed-air output for Pneumatic Hoses | Max. Pressure [bar] |
|---|---|---|
|
1x External dia. 6.0 mm
|
3x External dia. 6.0 mm
|
10
|

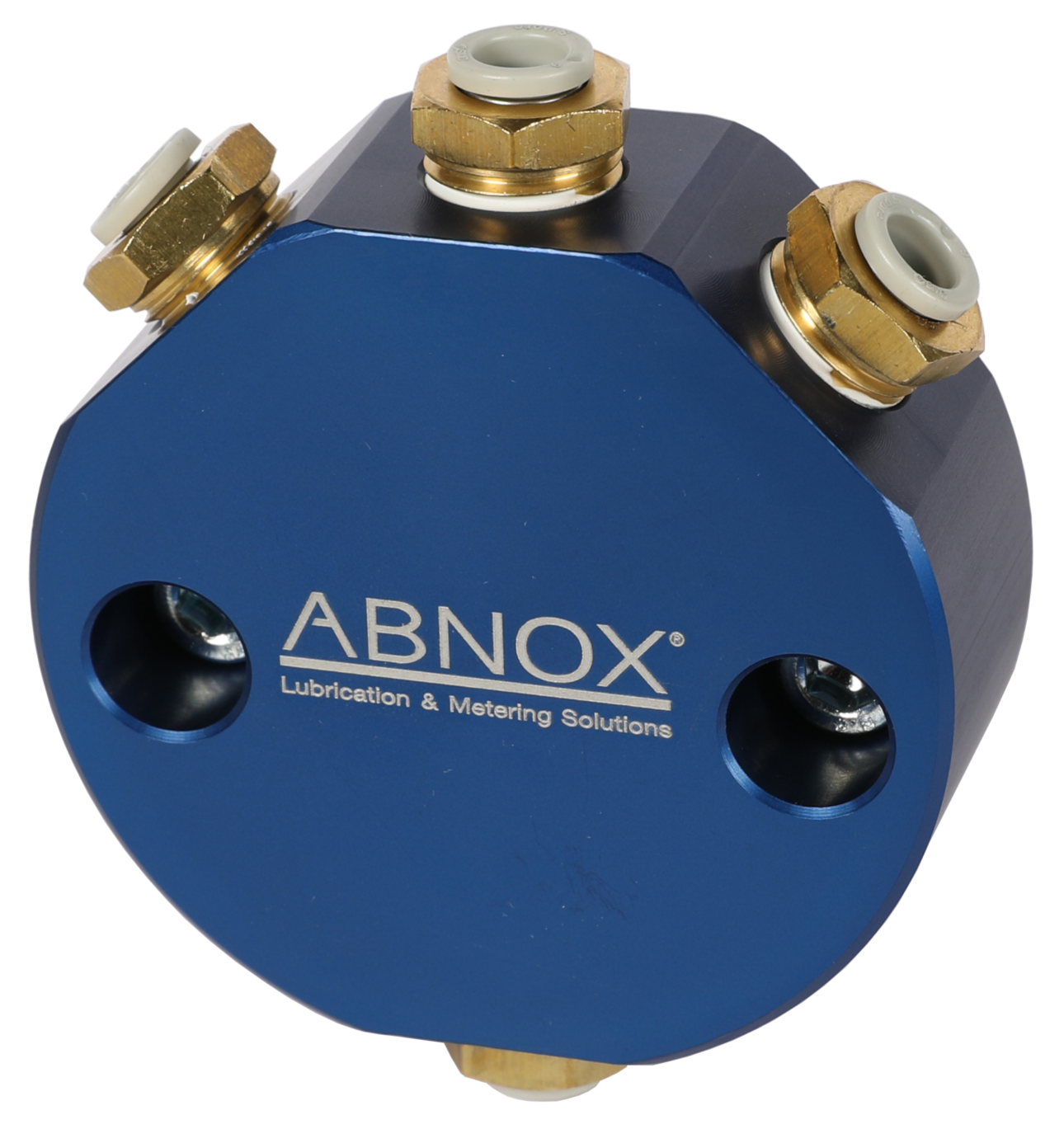

The 3-fold Pneumatic Distributor is designed for optimum distribution of the compressed air supply, e.g. for 3 ABNOX Dosing Valves.
Unused outlets can be sealed pressure-tight with Pneumatic Blind Plugs (Art.-No. 0002405).
Three Pneumatic Blind Plugs are included with this 3-way Manifold.

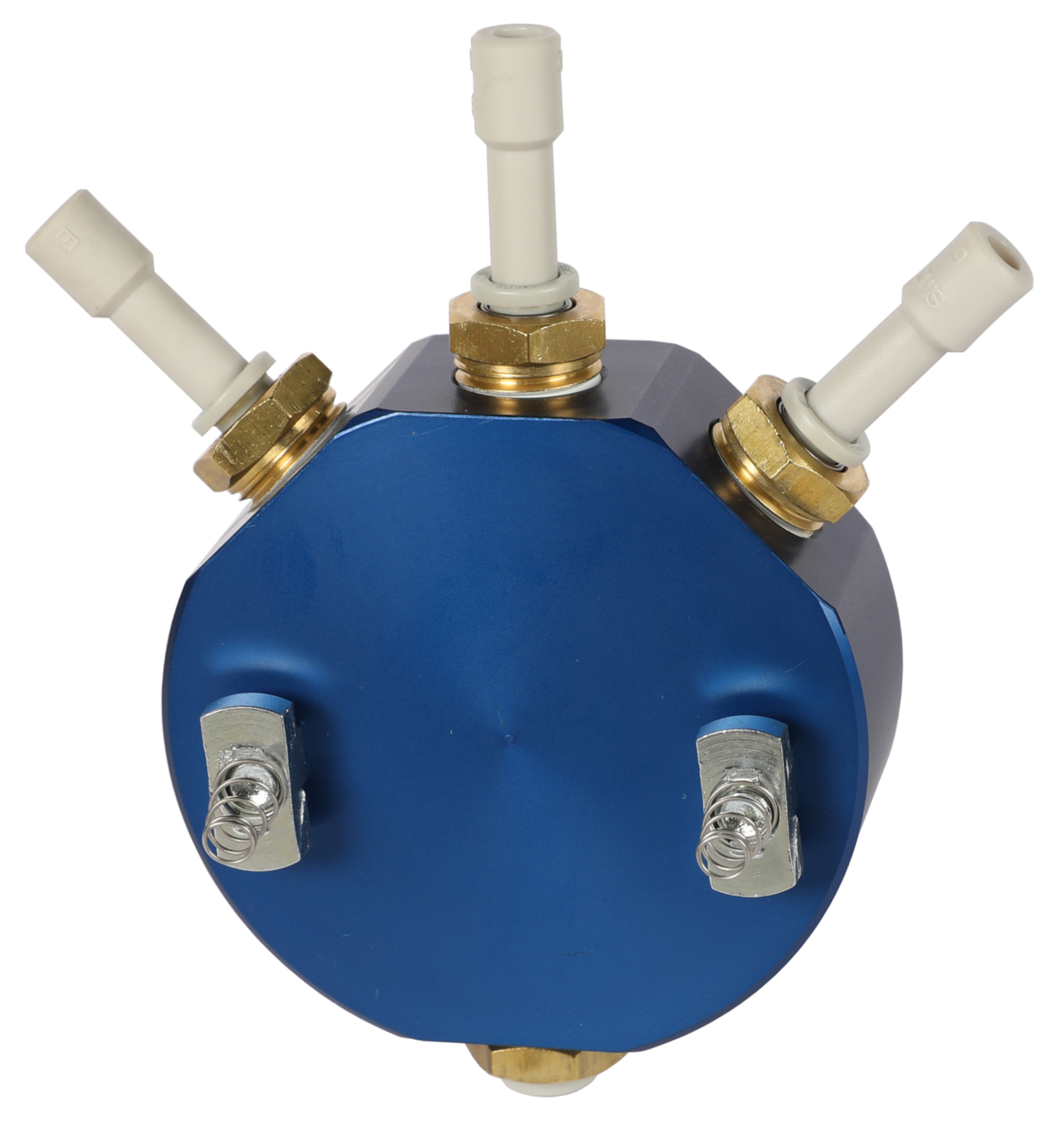

The M6x16 fastening Screws incl. Sliding Block with Spring (hole spacing 45 mm) included in the scope of delivery are suitable for fastening the Distributor.
